Security bollard TELESCOPIC

galvanized steelpowder-coated steelhigh

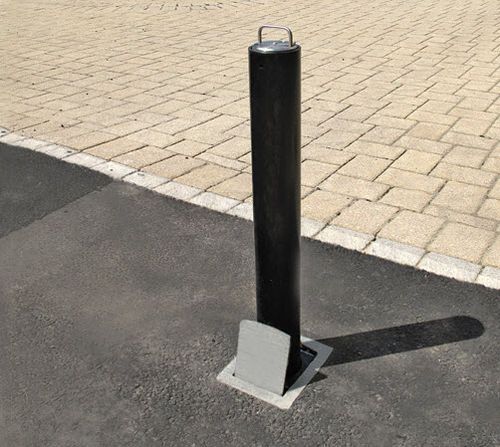

The Telescopic bollard range is supplied in steel, stainless steel or polyurethane elastomer. Bollards are available with a round or square profile and meets the requirement of a wide variety of security needs, from preventing access to driveways to stopping ram raid attacks. The bollards are designed with ease of use in mind. It takes seconds to raise each one and lock it into place using its integral high security lock. When not in use the post is completely concealed, sliding discretely into the ground where it is covered by a steel flap. Some of our telescopic bollards hold the Sold Secure grading “Security Posts Gold”, ensuring you have the best security bollards for the job! MATERIALS & FINISHES: Steel - galvanised finish Steel - polyester powder coated finish OPTIONS: Lift assisted (TPR300 and TPR600) INSTALLATION: Foundation depth is usually the same as root of bollard plus 110mm Minimum recommended foundation is Ø350mm Fill hole with just over 100mm of 20mm/12mm clean chippings Lower post on to chippings and check height Lid of post should be 5mm above ground level Position post central in bore hole and add more chippings until post stands unaided Withdraw sliding post and manoeuvre into vertical position using a spirit level Add more chippings - see specific instructions for amount Fill remainder of hole with 4:2:1 concrete mix and smooth off neatly to lid surround, leaving slight fallaway Finally check again vertical position using a spirit level and retract post back gently into ground & lock - LEAVE FOR 24 HOURS Keep fixed upper post clean during fitting procedure
