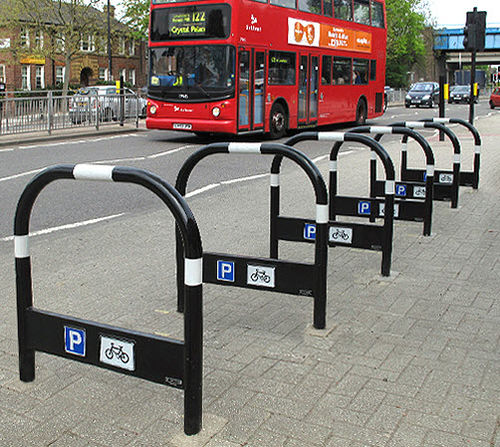

Hoop stands with tapper/signage plates
The Transport range of cycle stands incorporates a wide tapper plate with integral cycle and parking logos. The range is available in polyurethane elastomer (PU) coated steel and stainless steel as standard, with galvanised /coated mild steel as an option. The polyurethane is able to withstand the rigours of the outdoors as well as damage caused by cycle chains. In addition to providing an extra point to secure bicycles, the tapper bar aids detection by the partially sighted.
NOTE: The Transport Cycle Stand was previously known as the TFL600 cycle stand.
PRODUCT CODES & OUTLINE SPECIFICATIONS:
TRL600 (polyurethane)
Ø52mm tube; 735mm (w) x 750mm (a/g) x 300mm (b/g); weight: 16kg
MATERIALS & FINISHES:
Polyurethane elastomer - matt painted finish
Steel core - galvanised finish
Reflective tape - various colours
OPTIONS:
Bolt down
Without parking symbols
Without reflective tape
Without tapper plate
Stainless steel - G304 or G316 bright finish
Stainless steel - G304 or G316 satin finish
INSTALLATION:
Root fixed
Foundation depth is usually the same as the root depth of the cycle stand
Minimum recommended foundation square is the root diameter plus 200mm
Concrete mix to 25 newtons
Bolt down
Two base plates 120mm x 100mm x 6mm thick
Each base plate has 4no fixing holes to take Ø10mm ground fixing (maximum). Fixings not supplied
