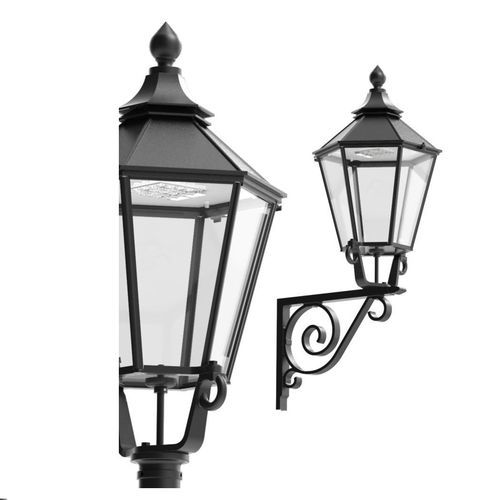

Traditional wall light ALT BERLIN

outdoorPMMAcast aluminum

General
With the ALT BERLIN, Hess combines historic lighting design with the latest technology: in this way the ALT BERLIN manages the balancing act between the classic ambience of a historic district and the high efficiency of the present day.

Additional design and mounting options
ALT BERLIN offers a wide design range. Different poles and pole or wall brackets allow optimal adaptation to the streetscape. The luminaire is available as a mast luminaire in single or double versions, as a 4-arm candelabra and in wall-mounted variants.

Technical details
Roof and luminaire cage made of aluminium alloy. Support elements made of cast aluminium. Glass cage closed; luminaire enclosure made of PMMA, clear or structured. Supplied with mounting bracket. Pole made of cast silumin aluminium with flange plate. Light colour options: 1800K / 2700K / 3000K / 4000K. Protection class I or II.

Related Products / Series
ALT BERLIN wall-mounted luminaires and ALT BERLIN heritage lighting variants available.

Characteristics / Technical specifications

• Series / model: ALT BERLIN
• Roof and luminaire cage: aluminium alloy
• Support elements: cast aluminium
• Glass cage: closed
• Luminaire enclosure: PMMA (clear or structured)
• Mounting: with mounting bracket; available as mast luminaire (single or double) or 4-arm candelabra; mast and wall bracket options
• Pole: cast silumin aluminium with flange plate
• Light colours: 1800K, 2700K, 3000K, 4000K
• Protection rating: Class I or II
• LED lifetime: L90 B10 / 100,000 h (TA <= 25° C)
• Ingress protection: IP54
