Traditional wall light TOLEDO

exteriorpolycarbonatealuminum

General

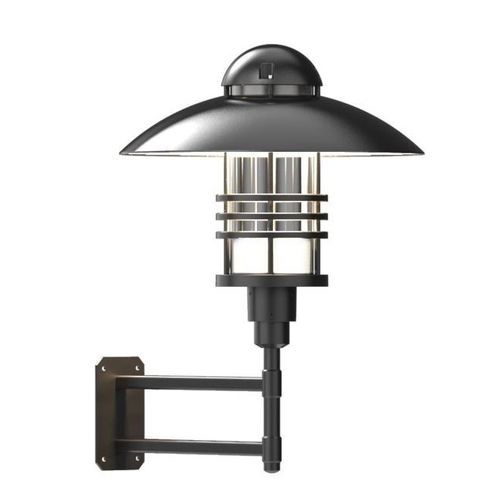

The TOLEDO symbolises a classic luminaire design with a domed canopy that defines its characteristic appearance. It is suitable for highlighting outdoor pedestrian areas, pavements and parks with an even and attractive light distribution.

Applications

• Pedestrian zones
• Footpaths and pavements
• Parks and public spaces

Technical details
Domed luminaire canopy, horizontally separated in two, made of aluminium with white painted underside. Support elements in aluminium. Cylindrical luminaire enclosure made of polycarbonate (PC). Round luminaire body in aluminium, available with or without louvres. Light colour options: 1700K / 1900K / 2000K / 2200K / 2700K / 3000K / 4000K. Electrical protection class: I or II.

Photometric and lifetime data
LED lifetime: L90 B10 / 100,000 h - TA ≤ 25° C
Rated luminous flux [lm]: TOLEDO 660 oL: 1,138 – 4,643 lm
Ingress protection: IP65
IK value: IK10

Dimensions
Dimension drawings and product graphics are provided for the available variants.

Related products

• TOLEDO — Wall-mounted luminaires (selected series)
• TOLEDO — Pole-mounted luminaires

Characteristics / technical specifications

• Model / series: TOLEDO
• Canopy: Domed aluminium canopy, horizontally separated in two parts; underside painted white
• Support elements: Aluminium
• Diffuser: Cylindrical polycarbonate (PC) enclosure
• Body: Round aluminium body, optional with or without louvres
• Available light colours (CCT): 1700K, 1900K, 2000K, 2200K, 2700K, 3000K, 4000K
• Protection class: Class I or II
• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C)
• Rated luminous flux (example): TOLEDO 660 oL — 1,138 to 4,643 lm
• Ingress protection: IP65
• Impact resistance: IK10
