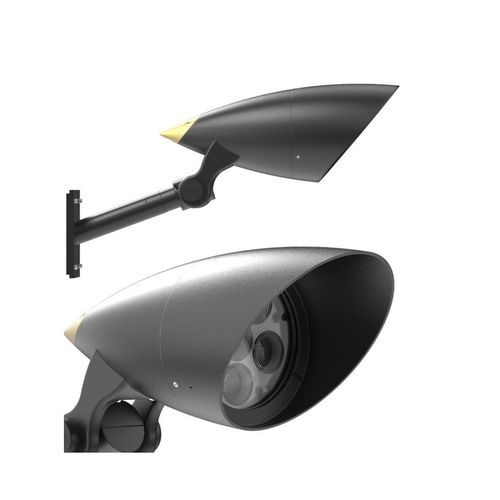

Contemporary wall light ARINI

outdoorPMMAPC

General
ARINI is a modular urban LED luminaire that combines light performance, multifunctionality and contemporary design. Designed for streets and public spaces, ARINI improves safety, communication and spatial attractiveness while offering configurable options for lighting, signage and integrated equipment. ARINI – INSPIRED BY NATURE.

Technical details
Luminaire head and shield plate in die-cast aluminium. Luminaire cover in PMMA. Head adjustable in 10° increments (horizontal up to 120°, vertical up to 130°). Shield plate adjustable 360°. Light colour options: 3000K and 4000K. Two axially symmetric and three rotationally symmetric optical variants available.

ARINI Light: End cap in PC, painted. Protection class I or II. Equipment: LED approx. 54W.

ARINI Light+: End cap in PC, partially satin-finished inside and polished outside. RGBW illumination available; three controller options for RGBW: CASAMBI, DMX, DALI. Protection class I or II. Equipment: LED up to approx. 60W.

ARINI CCTV, GOBO, SPEAKER: End cap in PC, painted.

ARINI WiFi: End cap in PC, black.

Key technical values
LED lifetime: L90 B10 / 100,000 h - TA ≤ 25° C
Ingress protection: IP66
Impact protection: IK08

Downloads (filenames)

• ARINI LIGHT_wall_mounted_IES-LDT.zip
• ARINI LIGHT+_wall_mounted_IES-LDT.zip
• HessMA_ARINI_Wartung_Speaker_HiFi_CCTV_WiFi.pdf
• HessMA_ARINI.pdf
• HessMA_ARINI_GOBO.pdf

Technical specifications

• Materials: luminaire head and shield plate in die-cast aluminium; luminaire cover in PMMA; end cap in PC with variant-specific finishes.
• Adjustability: luminaire head adjustable in 10° increments (horizontal max. 120°, vertical max. 130°); shield plate adjustable 360°.
• Light colour options: 3000K and 4000K; RGBW available for ARINI Light+ variants.
• Optics: two axially symmetric and three rotationally symmetric optic variants.
• RGBW controllers: CASAMBI, DMX, DALI (for ARINI Light+).
• Power / Equipment: ARINI Light approx. 54W (LED); ARINI Light+ up to approx. 60W (LED).
• Protection class: Class I or II depending on configuration.
• Ingress protection: IP66.
• Impact protection: IK08.
• LED lifetime: L90 B10 / 100,000 h at TA ≤ 25° C.
• Additional variants: CCTV, GOBO, SPEAKER, WiFi (end cap and finish variations documented).
• Dimension drawings and product images available on the product page.
