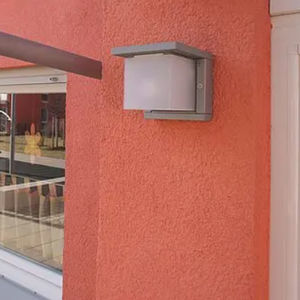

Contemporary wall light RESIDENZA GEN2

outdoorpolycarbonatecast aluminum

General
The RESIDENZA from Hess. A luminaire that is created like no other for holistic design concepts in urban space. Whether as an illuminating column, pole top mounted, wall mounted or catenary suspended luminaire – with the RESIDENZA from Hess, you always make the right choice: a diverse and therefore versatile lighting option.

Related Products

• RESIDENZA Gen2 — Wall mounted luminaires (selected series)
• RESIDENZA C Gen2 — Illuminating columns
• RESIDENZA — Catenary suspended luminaires
• RESIDENZA Gen2 — Pole mounted luminaires

Technical details
Protective cover made of PC glass. Luminaire rests on four aluminium rods. Cylindrical luminaire body made of cast aluminium, universal holder for poles with spigot 60.3 - 82.5 mm. Luminaire enclosure made of PC, clear. Diameter 200 mm. Light colour options: 1700K / 1900K / 2000K / 2200K / 2700K / 3000K / 4000K. Protection rating I or II.

Finishes & variants
RESIDENZA: Luminaire colour: DB 703 or all RAL (classic single shades), Hess-DB and Hess-Glimmer-colours. RAL pearl-mica-metallic-shades on request.

RESIDENZA ZERO: ULOR of 0%, complies with the Dark Sky Standard. Rods and internal parts uniformly painted, dark anthracite textured (similar to DB 703/Gris 2900 sablé).

Rated luminous flux
RESIDENZA Gen2 | 1052 - 4905 lm
RESIDENZA Gen2 ZERO | 1015 - 4734 lm

Other technical indicators
LED Lifetime: L90 B10 / 100.000h - TA <= 25° C
Ingress protection: IP65
IK-Value (PC): IK08

Technical features / specifications

• Protective cover: PC glass
• Mounting: Luminaire rests on four aluminium rods; universal holder for poles with spigot 60.3 - 82.5 mm
• Body: Cylindrical luminaire body made of cast aluminium
• Enclosure: Clear PC
• Diameter: 200 mm
• Light colour options: 1700K, 1900K, 2000K, 2200K, 2700K, 3000K, 4000K
• Protection rating: Class I or II
• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25 °C)
• Rated luminous flux (typical ranges): RESIDENZA Gen2 1052–4905 lm; RESIDENZA Gen2 ZERO 1015–4734 lm
• Ingress protection: IP65
• Impact resistance (PC): IK08
• Colours & finishes: DB 703 or all RAL (classic single shades), Hess-DB and Hess-Glimmer colours; RAL pearl-mica-metallic on request
• RESIDENZA ZERO specifics: ULOR 0% (complies with Dark Sky Standard); rods and internal parts uniformly painted dark anthracite textured
