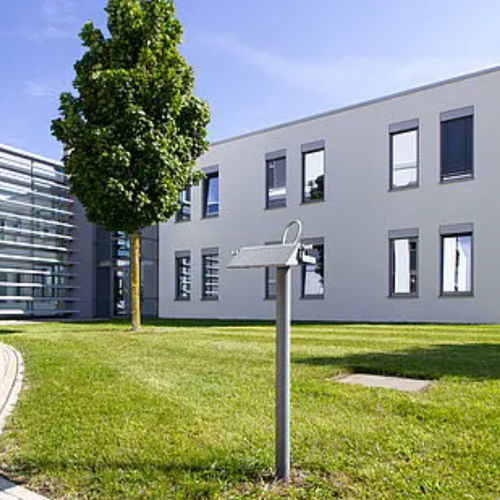

Surface-mounted light fixture NOVARA ML

pole-mountedLEDIP65

General
The NOVARA luminaire series delivers versatile lighting solutions for public spaces and buildings, offering wall-mounted, bracket-mounted and bollard variants to suit a range of exterior lighting scenarios. NOVARA is designed for coordinated urban and architectural lighting concepts.

Variants and configuration
NOVARA is available as single or double bracket-mounted versions and in dedicated versions for pole mounting, wall mounting and bollards, configured according to project requirements.

Technical details
Cast aluminium luminaire body. Enclosure with single-pane safety glass that opens without tools. Cable protection hose made of stainless steel mesh. Supplied with galvanised steel bracket. Available light colours: 1800K, 2700K, 3000K, 4000K. Electric protection class I or II.

LED and protection ratings
LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C)
Ingress protection: IP65
Impact resistance: IK07

Technical specifications

• Body: Cast aluminium luminaire body
• Enclosure: Single-pane safety glass, opens without tools
• Cable protection: Stainless steel mesh hose
• Bracket: Included, steel galvanised
• Light colours: 1800K, 2700K, 3000K, 4000K
• Protection class: I or II
• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C)
• Ingress protection: IP65
• IK rating: IK07
• Inclination NOVARA ML: adjustable in increments 0°, 15°, 30°
• Inclination NOVARA S / SAL / SL: adjustable in increments 0°, 10°, 20°, 30°, 40°
• Configurations: single or double bracket; pole, wall and bollard versions
