Urban lamp post SERA

contemporarycast aluminumglass

Overview
Through its curved, wave-like shape, the SERA from Hess is an outdoor luminaire designed for public and architectural spaces. It features a cast-aluminium body and a single-pane safety glass enclosure that opens without tools to simplify maintenance. Available with adjustable inclination options and multiple correlated colour temperatures for application-specific lighting.

Projects

• Consul's Estate, Rio de Janeiro - BR

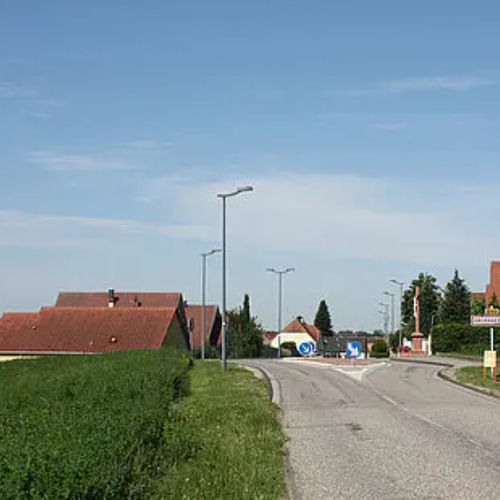

• Rue de Stundwiller, Oberroedern - FR

Technical details
Curved luminaire body made of cast aluminium. Luminaire enclosure made of single-pane safety glass (ESG), opens without tools. Inclination of luminaire without bracket SERA S adjustable in increments: 0°, 5°, 10°, 15°. With bracket SERA S: 5°, 10°, 15°, 20°. Light colour options: 1800K / 2700K / 3000K / 4000K. Protection class I or II. Designed for outdoor use with ingress protection IP66 and impact resistance IK08.

Technical specifications (table)
LED lifetime: L90 B10 / 100,000 h - TA <= 25° C
Rated luminous flux [lm]: 1,141 - 9,576 lm
Ingress protection: IP66
IK value: IK08
ENEC: For selected models, others on request

Features / technical specifications

• Body material: Cast aluminium
• Enclosure: Single-pane safety glass (ESG), opens without tools
• Inclination options (without bracket): 0°, 5°, 10°, 15°
• Inclination options (with SERA S bracket): 5°, 10°, 15°, 20°
• Light colour options: 1800K, 2700K, 3000K, 4000K
• Protection class: I or II
• LED lifetime: L90 B10 / 100,000 h (TA <= 25° C)
• Rated luminous flux: 1,141 - 9,576 lm
• Ingress protection: IP66
• IK value: IK08
• ENEC: Available for selected models (others on request)
