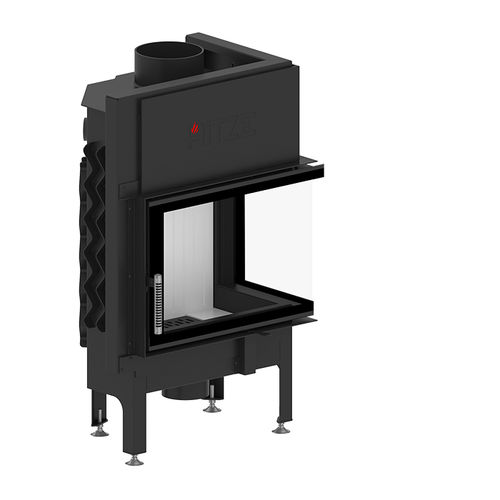

Wood-burning fireplace AL9R.H-D

cornercontemporaryclosed hearth

The most popular line of fireplaces on offer. Many options for personalizing the appearance: door handle, masking frames, black concrete. Efficient system of maintaining clean glass. Fireplace insert adapted to recuperation system. Energy class - A Ecodesign - + BlmSchV II - + Nominal power (kW) - 9 Heating load range (kW) - 4,5-12 Thermal efficiency (%) - 78,0 Dust emission [g/m³] - 0,036 Possibility to install the fireplace inserts with warm accumulative casing - YES CO emission by13% O2 (g/m³) - 0,818 Weight (kg) - 112 Flue diameter (mm) - 180 Air intake diameter (mm) - 125 Glass dimensions (mm) - 545 x 390 x 325 Min. active field of outlet vents (cm²) - 630-720 Min. active field of inlet vents (cm²) - 360-590 Fuel Type - seasoned wood of deciduous trees (beech, birch, hornbeam) with humidity of 12-20% Fireplace inserts are made of high-quality P265GH boiler steel, which is resistant to continuous operation at higher temperature. Reinforced door profile is used. REPEATABILITY: Production process use modern machinery park: welding robots, press brakes, laser cutters. ECOLOGY: Comply with strict emission standards and the ECODESIGN. SECURITY: An innovative ventilated handle protects against scalding. Suitable for homes with recuperation. EASY-TO-USE: The built-in intake with the throttle enables smooth integrated regulation of the amount of air supplied. CLEANLINESS: The air curtain provides the effect of „clean glass” and easy cleaning of the insert is possible thanks to the cast iron grate with a removable container for ash. OTHER EQUIPMENT: ceramic deflector, heat pipes, steel flue, adjustable feet (+4 cm), heat radiators.
