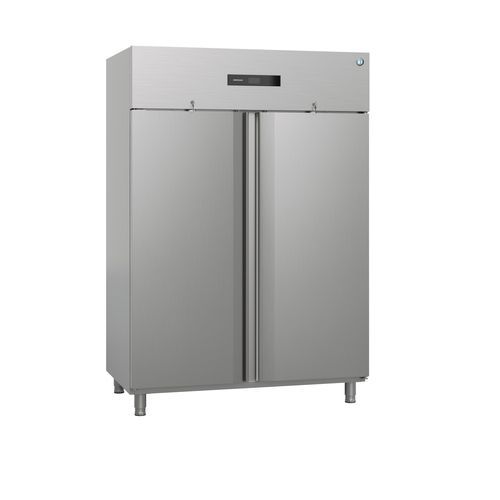

Commercial kitchen freezer ADVANCE F 140-4 L

double doorstainless steelbuilt-in

Product summary
The Advance F 140-4 L is a double-door freezer with a net usable volume of 797 L. The unit features stainless steel interior and exterior and a built-in refrigeration system; detailed external dimensions are provided in the technical specifications below.

Key features

• Durable stainless steel interior and exterior suitable for humid professional kitchen environments.
• Maximized storage with shelving from top to bottom and GN 2/1 shelf compatibility.
• Hygienic design: rounded corners, seamless surfaces, removable gaskets and anti-tilt shelves for easy cleaning and food safety.
• Mono-block refrigeration: evaporator placed on top to preserve internal usable space and allow easier maintenance.
• Consistent exterior design to integrate with Hoshizaki kitchen concepts.
• Intelligent air distribution for stable temperatures during frequent door openings and defrost cycles.

Documentation (available)

• Declaration of conformity (PDF)
• Ecodesign / Energy label (PDF)
• Instruction / Installation manual (PDF)
• Spec sheet (PDF)

Accessories (examples)

• Shelf (grey) with back guard for GN 2/1 cabinets excl. shelf support - item number 760660009
• Shelf (stainless steel) with back guard for GN 2/1 cabinets - item number 760660013
• Set of castors 125 mm (2 x braked and 2 x unbraked) - item number 760660022
• Set of legs 130-180 mm - item number 760660118
• Double door cabinet rail (left) GN 2/1, U-shape - item number 760660243
• Double door cabinet rail (right) GN 2/1, U-shape - item number 760660244
• Master key - item number 760660430
• Shelf (stainless steel) with back guard for GN 2/1 cabinets (bottom) - item number 760660437
• Shelf (grey) for GN 2/1 cabinets excl. shelf support (bottom) - item number 760660442
• Set of stainless steel shelves (6 top & 2 bottom) with back guard for GN 2/1 cabinets excl. shelf support (double door) - item number 760660445
• Pedal door opener Advance 70/140 - item number 819581052

Technical specifications

• Item number: 133141070
• Model name: Advance F 140-4 L
• Brand: Hoshizaki
• Warranty period: 5 Years on Parts & Labour (country dependent)
• Country of origin: Turkey
• Accessories included: 6 grey shelves (530 x 650 mm) + 2 bottom shelves
• Product type: Double-door freezer
• Equipped with: one right and one left hinged door with lock, automatic door closing, 8 grey shelves, LED lighting
• Width: 1344 mm
• Width (packed): 1435 mm
• Depth: 830 mm
• Depth (packed): 920 mm
• Height: 1850 mm
• Height including legs (min): 1980 mm
• Height including legs (max): 2030 mm
• Height (packed): 2090 mm
• Volume (packed): 2.76 m³
• Energy consumption: 3846 kWh/year
• Energy efficiency class: D
• Energy efficiency standard: ISO 22041:2019
• Energy Efficiency Index (EEI): 71.23
• Number of shelves: 8 (max 22 x 2)
• Shelf size: GN 2/1 deep
• Climate class: 5 (max ambient 40°C / 40% RH)
• Connection load: 700 W
• Exterior / Interior: Stainless steel
• Gross weight: 199 kg
• Net weight: 188 kg
• Insulation thickness: 60 mm (polyurethane)
• Legs / Castors: H = 130-180 mm (L)
• Net usable volume: 797 L
• Options: legs/castors, grey/stainless shelves
• Power supply: 230 V, 50 Hz
• Sound level: 56 dB
• Temperature range: -25 / -12 °C
• Volume, gross: 1200 L
• Cooling system: Built-in cooling system
• Door type: Solid door
• Refrigeration capacity: 674
• CO2 equivalent: 0.315 kg
• GWP: 3
• Refrigerant: 0.105 kg (R290)
• SKU: 133141070
