Commercial kitchen freezer ADVANCE F 70-4 L DR

uprightstainless steelbuilt-in

Overview

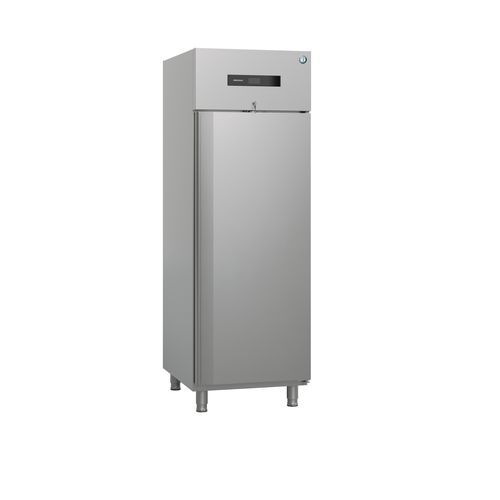

The Advance F 70-4 L DR is a commercial freezer by Hoshizaki offering 420 L net usable volume. Designed for professional kitchens, it features a mono-block self-contained cooling system with the evaporator mounted on top to maximise internal storage space. Solid door construction and stainless steel interior and exterior provide hygienic, easy-to-clean surfaces.

Key features

• 420 L net usable volume with 4 adjustable GN 2/1 shelves (expandable up to 22)
• Stainless steel interior and exterior for hygiene and easy cleaning
• Top-mounted removable evaporator for simplified maintenance and increased usable space
• Intelligent air distribution for temperature stability during frequent door openings and defrost cycles
• Right-hand hinged reversible solid door with lock and automatic closing; LED interior lighting
• 60 mm polyurethane insulation; temperature range −25 / −12 °C
• Refrigerant R290 (0.082 kg), GWP 3

Documentation (available)

• Declaration of conformity
• Ecodesign / Energy label
• Installation and instruction manual (Advance 70/140 User Manual)
• Spec sheet (ADVANCE F 70 4)

Accessories (listed)

• Grey shelf with back guard GN 2/1 (excl. support) — Item no. 760660009
• Stainless steel shelf with back guard GN 2/1 — Item no. 760660013
• Castor set 125 mm (2 braked / 2 unbraked) — Item no. 760660022
• Leg set 130–180 mm — Item no. 760660118
• Master key — Item no. 760660430
• Bottom stainless steel shelf GN 2/1 — Item no. 760660437
• Bottom grey shelf GN 2/1 (excl. support) — Item no. 760660442
• Set of stainless steel shelves (3 top + 1 bottom) GN 2/1 (single door) — Item no. 760660444
• Pedal door opener Advance 70/140 — Item no. 819581052

Technical specifications

• Item number / SKU: 133701010
• Model: Advance F 70-4 L DR
• Brand: Hoshizaki
• Net usable volume: 420 L
• Gross volume: 600 L
• Width: 654 mm; Depth: 830 mm; Height: 1850 mm
• Packed (W×D×H): 745 × 920 × 2090 mm; Packed volume: 1.43 m³
• Net weight: 112 kg; Gross weight: 121 kg
• Insulation: 60 mm polyurethane
• Power supply: 230 V, 50 Hz; Connection load: 650 W
• Energy consumption: 2171 kWh/year; Energy class: D (ISO 22041:2019); EEI: 61.3
• Climate class: 5 (max ambient 40 °C / 40% RH)
• Cooling system: Built-in; Refrigerant type: R290; Refrigerant quantity: 0.082 kg; GWP: 3; CO2 equivalent: 0.246 kg
• Temperature range: −25 / −12 °C
• Sound level: 54 dB
• Shelves supplied: 4 grey shelves + 1 bottom; Shelf size: GN 2/1 deep; Maximum shelves: 22
• Door type: Solid door, right hinged reversible with lock; Legs/Castors: H 130–180 mm
• Warranty: 5 years parts and labour (country dependent)
• Country of origin: Turkey
