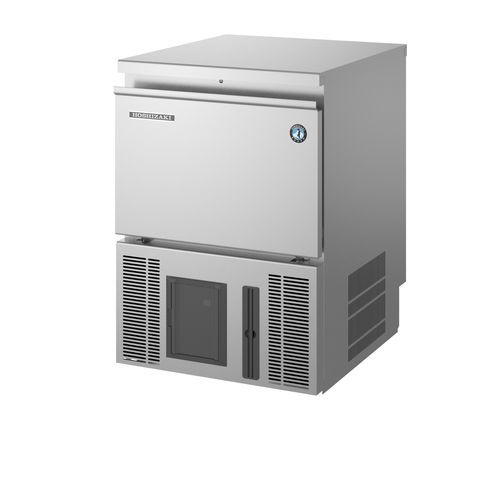

Countertop ice cube maker CM-50KE-HC

for restaurantfor barfull cube

Product Overview
The Hoshizaki CM-50KE-HC is a self-contained cubelet ice maker delivering up to 55 kg of dry, hard cubelet ice per 24 hours. Its extruding head compresses ice to produce dense, slow-melting cubelets ideal for cocktails and beverages that require controlled dilution. Compact dimensions suit limited spaces while offering commercial-grade performance.

Key features

• Sustainable refrigerant: Uses R290 (natural refrigerant) with low GWP to improve climate performance and maintain production capacity.
• Hygienic construction: Exterior in stainless steel with a closed water circuit to reduce contamination; easy to clean and maintain.
• Preventive maintenance: FM series worktime-based replacement system and intuitive control display for scheduled upkeep; automated rinse cycle minimizes mineral residue.
• Low-maintenance bearings: Carbon graphite bushings and water-lubricated design reduce the need for grease and lower risk of calcification and bacterial buildup.
• Space-efficient: Compact footprint for installation in bars, cafés and small back-of-house areas.
• Plug & Play: Simple installation with supplied kit for quick commissioning.

Application
Designed for bars, restaurants and venues prioritizing cocktail quality and precise dilution control. Produces cubelet ice suited for Mojitos, Tiki cocktails and other mixed drinks requiring hard, dry ice.

Documentation & Accessories
Supplied accessories: installation kit and scoop. Documentation includes declaration of conformity, installation and instruction manuals and a product spec sheet for this model.

Caractéristiques / spécifications techniques

• Item number: F161-C103
• Model name: CM-50KE-HC
• Ice maker type: Cubelet ice maker
• Brand: Hoshizaki
• Product configuration: Self Contained
• Warranty period: 2 Years on Parts & Labour - based on country agreement
• Country of origin: UK
• Accessories included: Installation kit, Scoop
• Corresponding water filters: 4HC-H Single Water Filter, 4HC Replacement Cartridge
• Width: 498 mm
• Width (packed): 595 mm
• Depth: 570 mm
• Depth (packed): 680 mm
• Height: 697 mm
• Height (packed): 873 mm
• Volume (packed): 0.3532 m³
• Electric Consumption: 0.27 kW
• Energy consumption: 0.27 kWh
• Ambient temperature (maximum): 40 °C
• Ambient temperature (minimum): 5 °C
• Voltage range (Rated Voltage): ±6%
• Water supply pressure (maximum): 0.8 MPa (8 bar)
• Water supply pressure (minimum): 0.05 MPa (0.5 bar)
• Water supply temperature (maximum): 35 °C
• Water supply temperature (minimum): 5 °C
• Electrical circuit breaker protection: 6 A
• Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
• Gross weight: 58 kg
• Net weight: 49 kg
• Heat Rejection (AT 32°C, WT 21°C): 0.45 kW
• Power supply: 1/220 - 240V/50Hz
• Storage bin capacity: 18 kg
• Volume, gross: 0.353 l
• Cooling system: Air Cooled
• Ice type: Cubelet
• Ice production: 55 (kg/24h)
• Water consumption - Air cooled ice makers: 0.055
• CO2 equivalent: 0.15 kg
• GWP: 3 GWP
• Refrigerant: 0.05 kg
• Refrigerant type: R290
• SKU: F161-C103
