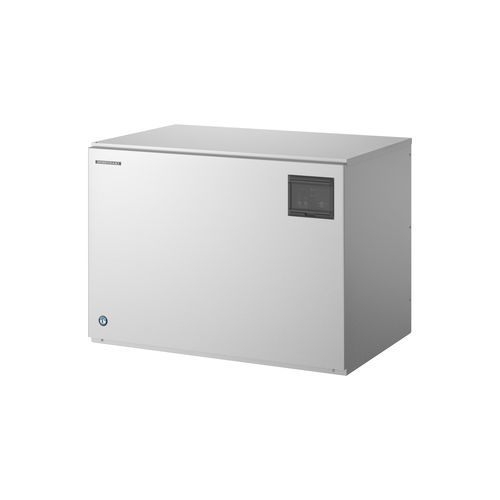

Modular ice cube maker FM-1200ALKE-R452N-SB

commercialprofessionalnugget

Product overview

This Hoshizaki FM-1200ALKE-R452N-SB is a modular nugget ice maker producing up to 1060 kg of nugget ice per 24 hours. Nugget ice provides fast cooling with controlled dilution and is suitable for cocktails, mocktails, smoothies and hygienic food displays. The machine features a closed water circuit and stainless steel exterior for hygiene and ease of maintenance.

Key features

• Exterior and auger made of stainless steel; closed water circuit minimises contamination risk.
• Anti-calcification design with carbon graphite bushings for grease-free operation and reduced maintenance.
• Intuitive control display for preventive maintenance and long service life.
• Modular plug-and-play design for fast installation; installation kit included.

Specifications

Item number: F073-C207
Model name: FM-1200ALKE-R452N-SB
Ice maker type: Nugget ice maker
Brand: Hoshizaki
Product configuration: Modular
Warranty period: 2 Years on Parts & Labour (country dependent)
Country of origin: UK
Accessories included: Installation kit
Please observe: This icemaker is available on special order only; allow longer lead times.
Corresponding water filters: 4HC-H Triple Water Filter, 4HC Replacement Cartridge
Dimensions (W x D x H): 762 x 700 x 780 mm
Width (packed): 873 mm; Depth (packed): 820 mm; Height (packed): 947 mm
Packed volume: 0.678 m³
Electric consumption: 0.515 kW
Ambient temperature (operating): 5 °C to 40 °C
Voltage range (Rated Voltage): ±10%
Water supply pressure: 0.05–0.8 MPa (0.5–8 bar)
Water supply temperature: 5 °C to 35 °C
Exterior: Stainless steel AISI 441 (front), galvanized steel (rear)
Net weight: 98 kg; Gross weight: 108 kg
Power supply: 1/220–240V/50Hz
Cooling system: Remote condenser
Ice type: Nugget
Ice production: 1060 kg/24h
Water consumption (air cooled): 1.07
Refrigerant compatibility: R452A
Corresponding bins: B-210SB, B-340SB
Optional top kits: TK-18D (for B-340SB), TK-30 (for B-210SB), TK-48 (for B-340SB)
SKU: F073-C207

Documentation (available)

Declaration of conformity (PDF)
Installation manual (PDF)
Instruction manual (PDF)

Accessories

4HC-H Triple | 9320-53
4HC Replacement Cartridge | 9655-11

Technical specifications

• Model: FM-1200ALKE-R452N-SB
• Item number / SKU: F073-C207
• Brand: Hoshizaki
• Type: Nugget ice maker, modular configuration
• Ice production capacity: 1060 kg / 24h
• Dimensions (W x D x H): 762 x 700 x 780 mm
• Packed dimensions (W x D x H): 873 x 820 x 947 mm; Packed volume: 0.678 m³
• Net weight: 98 kg; Gross weight: 108 kg
• Power supply: 1/220–240V/50Hz; Electric consumption: 0.515 kW
• Cooling system: Remote condenser
• Refrigerant compatibility: R452A
• Water consumption (air cooled): 1.07
• Ambient operating range: 5 °C – 40 °C
• Exterior material: Stainless steel AISI 441 (front), galvanized steel (rear)
• Warranty: 2 Years on parts & labour (country dependent)
• Accessories included: Installation kit; corresponding filters and optional top kits
