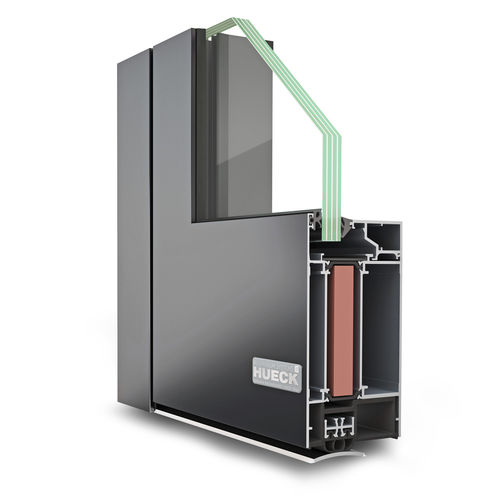

Aluminum door profile LAVA 77-30
thermally-insulatedwind-prooffire-rated

aluminum door profile
aluminum door profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Technical characteristics
thermally-insulated, wind-proof, fire-rated, high-performance, waterproof

Description

Thermally insulated fire protection door, fire resistance rating 30 minutes Construction: Thermally insulated aluminium fire protection construction in accordance with DIN 4102-5 and EN 1634-1 (T30-1 / -2 -FSA and T30-1 / -2 -RS-FSA) for single- and double-leaf doors, opening inwards or outwards, with general building supervisory authority approval Z-6.20-2144 F30 fire resistant glazing in accordance with DIN 4102-13 and EN 1634-1 with general building supervisory authority approval Z-19.14-2049 Without additional fire protection insulating strips in the leaf and frame. In the event of fire, foaming insulation layer strips integrated in the door and glass rebate area. Large door and leaf dimensions: 1-leaf max. passage W x H 1458 x 3009 mm 2- leaf max. passage W x H 2858 x 3009 mm Leaf weight up to 250 kg Element height walls (fixed glazing) up to 5000 mm Glass sizes: up to max. 1586 x 3000 mm, vertical and horizontal. Panel sizes: max. 1400 x 3000 mm, vertical and horizontal. Various glazing versions, including as triple insulating glass with a Ug value of max. 0.5 W/m2K. Panel inserts optionally with vision panel, with a Up value of max. 0.3 W/m2K Also according to product standard 16034 with CE marking Insulating zone: Factory-mounted low-shear composite, suitable for subsequent powder coating and anodisation Elevation width: Narrow elevations of the fixed and sash frame combination from 148 mm Profile depth: Fixed and sash frame: 77 mm Flush inside and outside Highlights: Uf ≥ 2.0 W/m²K Water tightness up to class 8A (EN 12208) Air permeability class 2 (EN 12207) Resistance to wind load up to class C3 / B3 (EN 12210)

VIDEO
