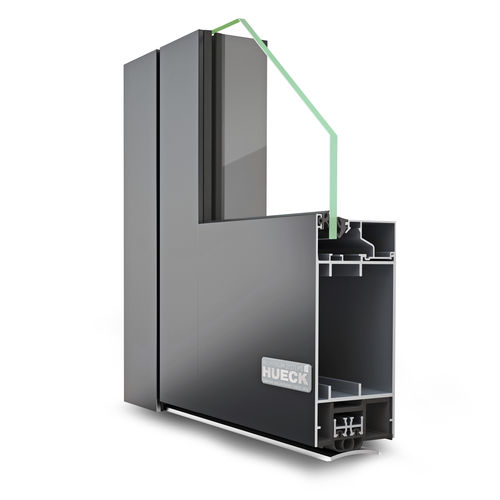

Non-insulated aluminium smoke control construction
in accordance with DIN 18095 (RS-1 / -2) and DIN EN 1634-3 (S200 C5)
for single- and double-leaf doors,
opening in or out in accordance with P-12-001078-PR01 ift
Sizes / dimensions
single-leaf: max. clearance W x H 1350 x 2510 mm
double-leaf: max. clearance W x H 2500 x 2510 mm
Leaf weights up to 180 kg
Profile depth
Fixed / leaf frame 65 mm
