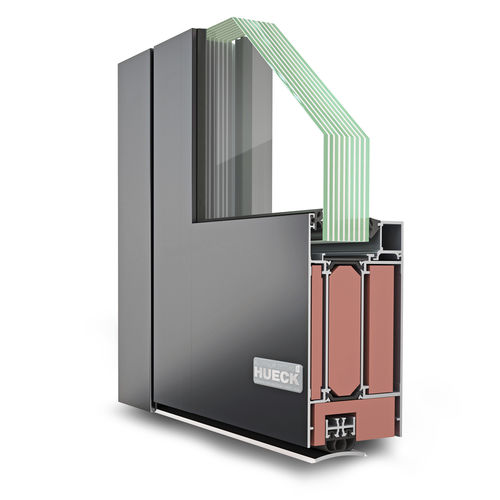

Aluminum door profile LAVA 77-90
thermally-insulatedfire-rated

aluminum door profile
aluminum door profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Technical characteristics
thermally-insulated, fire-rated

Description

Fire protection doors, thermally insulated, fire resistance rating 90 minutes Construction Thermally insulated aluminium fire protection construction in accordance with DIN 4102-5 and DIN EN 1634-1 (T90-1 / -2 -FSA and T90-1 / -2 -RS-FSA) for single- and double-leaf doors, opening in or out F90 fire-resistant glazing in accordance with DIN 4102-13 and EN 1634-1 in Germany with case-by-case approval Sizes / dimensions single-leaf: max. clearance W x H 1358 x 2520 mm double-leaf: max. clearance W x H 2650 x 2520 mm Element height of walls (fixed glazing) up to 3000 mm Glass dimensions: up to max. 1375 x 2780 mm in upright format Panel dimensions: max. 2410 x 1475 mm in horizontal format Leaf weight up to 300 kg Profile depth Fixed / leaf frame 77 mm Glazing frame 110 mm
