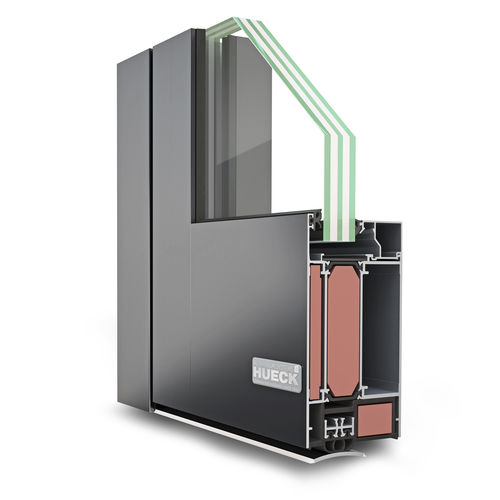

Aluminum door profile LAVA 77-60
thermally-insulatedfire-rated

aluminum door profile
aluminum door profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Technical characteristics
thermally-insulated, fire-rated

Description

Fire protection doors, thermally insulated, fire resistance rating 60 minutes Construction Thermally insulated aluminium fire protection construction in accordance with DIN 4102-5 and DIN EN 1634-1 (T60-1 / -2 -FSA and T60-1 / -2 -RS-FSA) for single- and double-leaf doors, opening in or out in Germany with case-by-case approval F60 fire-resistant glazing in accordance with DIN 4102-13 and EN 1634-1 in Germany with case-by-case approval Sizes / dimensions single-leaf: max. clearance W x H 1400 x 2534 mm double-leaf: max. clearance W x H 2500 x 2534 mm Element height of walls (fixed glazing) up to 3500 mm Glass dimensions: up to max. 1250 x 2550 mm, upright and horizontal format. Panel dimensions: max. 571 x 2527 mm in upright format leaf weight up to 250 kg Profile depth Fixed / leaf frame 77 mm
