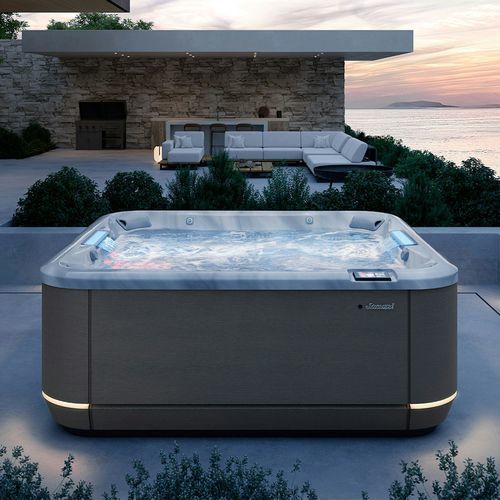

Above-ground hot tub J508™

squareeight-personacrylic

Overview
Eight seating options deliver a full-featured hydrotherapy spa designed for commercial and high-end residential use. The Jacuzzi® J508™ combines 56 jets, an Infrared therapy seat, immersive experience modes and SmartTub® connectivity for customizable wellness sessions.

Key benefits

• Three preset hydromassage levels for quick selection from gentle circulation to intense massage
• Five immersive modes combining hydromassage, infrared therapy and lighting for targeted wellness outcomes
• Infrared therapy seat with four IR lights for full-back Infrared treatment
• Personal user profiles to save hydrotherapy, lighting and audio settings
• SmartTub® app for remote monitoring, control and advanced features
• True Water® system with oxygen-filled nanobubbles for clearer water with minimal chlorine
• Six-stage filtration and dual filters for prolonged water clarity
• Dual illuminated waterfalls and responsive entry lighting
• Integrated surround audio and adjustable pillows for a complete sensory experience
• Heat-pump ready for energy-efficient heating and cooling

Features

• Advanced hydrotherapy — Three preset hydromassage levels and dedicated jets to relieve tension from shoulders to feet.
• Immersive experience modes — Five multisensory programs that coordinate jets, infrared therapy and lighting.
• Personalization — User profiles store custom spa sessions and track usage for hydromassage and infrared therapy.
• SmartTub® system — App control for modes, profiles, scheduling, IR tracking and energy monitoring.

Seating & Jets

• Infrared therapy seat — Full-back Infrared and Red Light therapy with four IR lights plus hydromassage jets.
• MX therapy seat — Contoured lower-back relief with high-volume, low-pressure jets and neck jets.
• RX therapy seat — Ring of spinning RX jets targeting back and shoulders with neck support.
• ProAir™ seat — Focus on neck and shoulders with broad hydromassage for the back.
• FX therapy seat — Spiraling FX jets delivering stimulating massage across neck, back and calves.

Technical specifications

• Brand: Jacuzzi®
• Model: J508™
• Dry Weight: 1045 lb / 475 kg
• Jets: 56
• Primary Pump: North America (60 Hz): 2-Speed, 5.1 HP break, 2.5 HP continuous, 56 Frame
• Secondary Pump: North America (60 Hz): 2-Speed, 5.1 HP break, 2.5 HP continuous, 56 Frame
• Circulation Pump: Yes
• Filtration System: 5-stage filtration
• Filters: 2
• Filter Type: 6-stage filtration (also referenced on product details)
• Electrical: North America (60 Hz): 240 VAC @ 40A, 50A, or 60A; Export (50 Hz): 220-240 VAC @ 1x32A, 1x20A/1x16A, or 3x16A, or suitably rated circuit breaker to comply with local electrical codes. Certain countries may require dual power inputs; two GFCI/RCD breakers are required for this configuration.
• Heater Included: Yes
• Shape: Square
• Seat Jets: Open seating
• Waterfalls: 2 (dual waterfalls with lighting)
• Water Management System: One ProClarity® Polishing filter cartridge on 8-hour circulation pump; Two ProClear® 50 ft² filters; One ProCatch Basket; One ProCatch Mesh filter; True Water® System
• Height (in): 37.0
• Length (in): 94.0
• Width (in): 94.0
• Volume (gals): 425.0
• Capacity Volume (gals): 425.0
