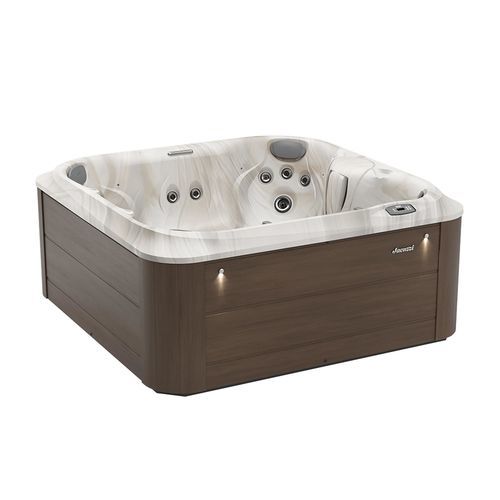

Above-ground hot tub J-245™

square7-personacrylic

Product overview
Spacious 7-seat square spa designed for residential and project installations. The J-245™ from the J-200™ Collection features a jetted foot dome and ClassicPro™ jets to deliver targeted, powerful hydrotherapy for multiple users simultaneously. Ideal for communal relaxation areas and wellness-focused designs.

Details
Equipped with ClassicPro™ jets, including four Rotational Jets and a dedicated jetted foot dome. Integrated back and shoulder waterfall, LED lighting and an open seating layout provide ergonomic support and shared comfort for up to seven occupants.

Features

• J-200™ OPEN SEATING — Multiple seating positions with ClassicPro™ jets offering a comprehensive hydromassage experience and tested jet placement for targeted therapy.
• CLEARRAY ACTIVE OXYGEN™ — Combined ozone and UV-C water treatment technology to enhance disinfection and reduce chemical consumption.

Seating & jets

• STRATEGIC UPPER BACK SEAT — Clustered jets target key shoulder muscles while lower back jets provide deep-tissue relief.
• RELAXING BACK SEAT — Large back jets deliver a broad, relaxing massage.
• SHOULDER AND BACK SEAT — Arch of jets focuses on shoulders with strong jets along the spine for full back relaxation.

Technical specifications

• Volume: 320 gal / 1211 L
• Dry Weight: 717 lb / 326 kg
• Jets: 37
• Primary Pump: 2-speed, 4.5 HP brake, 2.5 HP continuous, 56 Frame
• Secondary Pump: 1-speed, 4.8 HP brake, 2.5 HP continuous, 56 Frame
• Circulation Pump: No
• Diverter Valves #: 0
• Filtration System: 2-stage filtration
• Filters: 1
• Filter Type: One 50 ft² filter cartridge on jets pump 1, ClearRay Active Oxygen® System
• Water Management System: ClearRay® UV-C System
• Shape: Square
• Seat Jets: Open
• Electrical: North America (60 Hz): 240 VAC @ 40A, 50A or 60A; Export (50 Hz): 220–240 VAC @ 1x16A, 1x32A or 2 out of 3-phase (see manual). Certain countries may require dual power inputs; two GFCI/RCD breakers required if so.
• Height (in): 36.0
• Length (in): 84.0
• Width (in): 84.0
• Capacity (gals): 320.0
