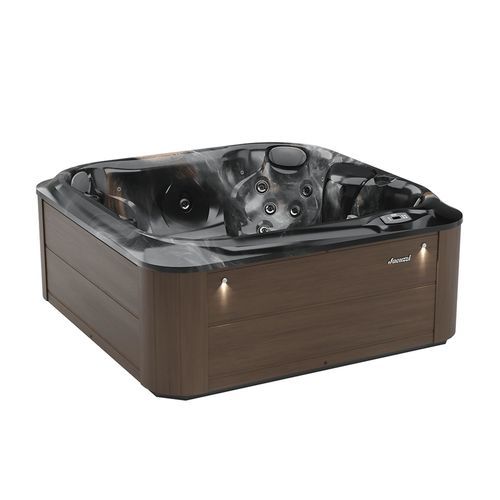

Above-ground hot tub J-225™

square5-personacrylic

Description
The J-225™ is a compact, square hot tub designed for patios and small spaces. It accommodates up to five adults and combines targeted hydromassage with flexible seating, including a pivot bench seat and a comprehensive back seat. LED lighting and plug-in electrical capability simplify installation and on-site integration.

Details
Compact footprint with versatile seating layout; one of two Jacuzzi® Hot Tub models to feature a pivot bench seat. Plug-in ready (120V) for simplified setup where hardwiring is not required. Low maintenance and energy-efficient operation suitable for residential and small commercial installations.

Features

• J-200™ OPEN SEATING: Multiple seating positions with ClassicPro™ jets for a complete hydromassage experience with tested jet placement.
• CLEARRAY ACTIVE OXYGEN™: Combines ozone action with UV-C rays to increase water disinfection and reduce chemical use.
• BENCH SEAT: Bench-style seat delivers targeted back relief for one to two adults, unique to this Collection.
• COMPREHENSIVE BACK SEAT: Broad-coverage back jets offer an extensive back massage in a patio-sized spa.

Product Media
High-resolution photography and an embedded product video are provided on the product page to illustrate shell and cabinet color/finish options and seating layouts.

Dimensions
Height (in): 33.0
Length (in): 80.0
Width (in): 80.0
Volume (gals): 280.0
Capacity Average (gals): 382.0
Capacity Volume (gals): 382.0

Water & Filtration
Filtration System: 2 stage filtration
Filters: 1
Filter Type: One 50 ft2 filter cartridge on jets pump 1, ClearRay Active Oxygen® System
Water Management System: ClearRay® UV-C System

Electrical
North America (60 Hz): 120V@15A (GFCI cord) 240 VAC@30A or 40A. Export (50 Hz): 220-240 VAC@1x16A, 1x32A or 2 out of 3-phase (see manual) or suitably rated circuit breaker to comply with local electrical codes. Certain countries may require dual power inputs; two GFCI/RCD breakers are required for this configuration.

Notes
Includes LED lighting and a pivot bench seat. Energy-efficient, plug-in capable model for simplified setup.

Technical specifications

• Volume: 280 gal / 1060 l
• Dry Weight: 619 lb / 281 kg
• Jets: 26
• Primary Pump: 2-Speed, 2.5 HP brake, 1.5 HP continuous, 48 Frame
• Circulation Pump (Y/N): No
• Diverter Valves #: 0
• Filtration System: 2 stage filtration
• Filters: 1
• Electrical: North America (60 Hz): 120V@15A (GFCI cord); 240 VAC@30A or 40A. Export (50 Hz): 220-240 VAC@1x16A, 1x32A or 2 out of 3-phase (see manual); may require dual inputs and two GFCI/RCD breakers where applicable.
• Filter Type: One 50 ft2 filter cartridge on jets pump 1, ClearRay Active Oxygen® System
• Shape: Square
• Seat Jets: Open
• Water Management System: ClearRay® UV-C System
• Height (in): 33.0
• Length (in): 80.0
• Width (in): 80.0
• Volume (gals): 280.0
• Capacity Average (gals): 382.0
• Capacity Volume (gals): 382.0
