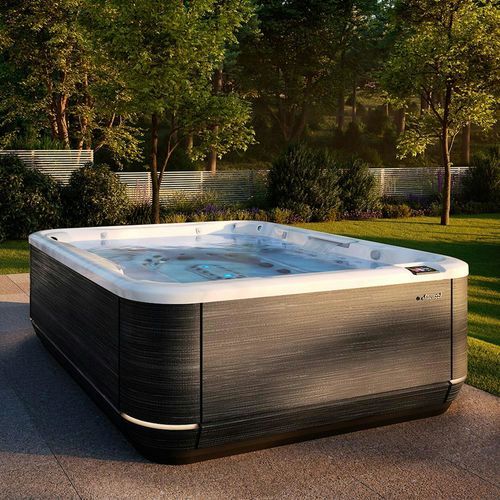

Above-ground hot tub J509™

rectangular9-personacrylic

Overview
The J509™ is a designer hot tub configured for flexible seating and integrated wellness features. With nine seating options including two captain's chairs and bench seating, it combines targeted hydrotherapy with full-back infrared therapy and curated immersive modes for both relaxation and recovery.

Details

• Three preset hydromassage levels, from gentle circulation to intense massage, enable quick selection of the desired treatment intensity
• Five immersive experience modes coordinate hydromassage, IR therapy, and lighting for targeted wellness outcomes
• Infrared therapy seat equipped with four infrared lights and full-back infrared coverage for deep tissue support
• User profiles allow each user to save hydrotherapy, lighting and audio settings and recall them with a single tap
• SmartTub® app support for the J5 line provides remote monitoring, control and advanced scheduling features
• True Water® system delivers clear, low-chlorine water using oxygen-filled nanobubbles
• Multi-stage filtration keeps water cleaner for extended periods with a compact, space-saving design
• Dual waterfalls with integrated lighting create an architectural water feature
• Approach-responsive lighting brightens as a user nears the spa and remains active while entering or exiting
• Curated soundscapes set ambient tone for relaxation
• Adjustable pillows with integrated surround sound for enhanced audio immersion
• Heat-pump ready for energy-efficient heating and optional cooling

Features

• Advanced hydrotherapy: Three preset hydromassage levels and targeted jets from shoulders to feet combined with a dedicated infrared therapy seat featuring four IR lights
• Immersive experience modes: Five coordinated modes combining hydromassage, IR therapy and lighting, designed for outcomes such as improved sleep or accelerated recovery, activated with one touch
• Personalization: Save and recall custom settings (hydrotherapy, lighting, audio) per user profile; usage tracking for hydromassage and infrared therapy
• SmartTub® connectivity: App control for experience modes, profiles, scheduling, IR usage tracking and synchronization with the top-side interface

Seating & Therapy Seats

• Nine seating options including two captain's chairs and bench seating
• Infrared therapy seat: Four IR lights and full-back infrared therapy combined with hydromassage jets for comprehensive relief
• MX therapy seat: Deeply contoured seat delivering high-volume, low-pressure massage focused on lower back, paired with neck jets
• RX therapy seat: Ring of spinning RX jets targeting back and shoulders, paired with neck jets
• Proair™ seat: Targets neck and shoulder muscles precisely while providing hydromassage to larger back muscles
• FX therapy seat: Array of FX jets delivering spiral-action massage for neck, shoulders, full back and calves

Dimensions & Capacity

• Height: 37.0 in (94.0 cm)
• Length: 94.0 in (239.0 cm)
• Width: 110.0 in (279.4 cm)
• Volume: 505.0 gallons (approx. 1912 L)

Technical specifications

• Dry Weight: 1275 lb / 579 kg
• Jets: 76
• Primary Pump: North America (60 Hz): 2-Speed, 5.1 HP break
• Secondary Pump: North America (60 Hz): 2-Speed, 5.1 HP break
• Circulation Pump: Yes
• Filtration System: 5-stage filtration
• Filters: 2
• Electrical: North America (60 Hz): 240 VAC@40A, 50A, or 60A; Export (50 Hz): 220-240 VAC@1x32A, 1x20A/1x16A, or 3x16A, or suitably rated circuit breaker to comply with local electrical codes. Certain countries may require dual power inputs; two GFCI/RCD breakers are required for this configuration.
• Heater Included: Yes
• Filter Type: 6-stage filtration
• Shape: Rectangular
• Seat Jets: Open
• Waterfalls: 2 (dual waterfalls with lighting)
• Water Management System: One ProClarity® Polishing filter cartridge on 8-hour circulation pump; Two ProClear® 50 ft2 filter; One ProCatch Basket; One ProCatch Mesh filter; True Water® System
