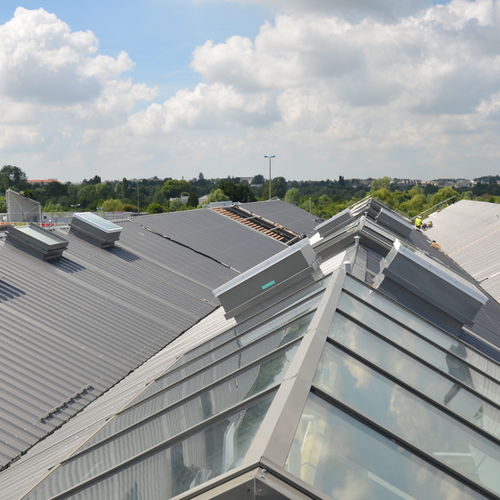

Glazing rooflight ECOPLAN

for buildingsmoke controlfor ventilation

Kingspan Ecoplan Rooflight - Mono or Dual-Pitch daylighting solution The Kingspan Ecoplan Rooflight is a self-supporting aluminium rooflight designed to deliver superior visual comfort within industrial and commercial buildings. The adaptable modular unit is available in single or dual pitch versions with a range of pitch angles, and with translucent or opalescent multi-wall polycarbonate glazing in 10mm or 16mm thickness. The Ecoplan rooflight can also be integrated with Smoke and Heat Exhaust (SHE) and Ventilation units enhancing the use of the space occupied by the rooflight. It is also available with ISO + insulation to further reduce heat loss, creating pleasant indoor climates for building occupants The structural and thermal performance of the Ecoplan Rooflight are covered by Kingspan Guarantee, for a period of 10 years. The Ecoplan system is a single or double pitch self-supporting aluminium rooflight system. A number of polycarbonate glazing options are available delivering maximum flexibility to meet a variety of project requirements. Ecoplan’s flexible modular design adapts well to all architectural concepts to enhance the building envelope roof or facade. The Ecoplan rooflight is compliant to the european standard EN-14963. The ISO+ offer includes reinforced insulation to limit further heat losses. Natural daylighting will be provided by the Ecoplan rooflight system, including a self-bearing aluminium structure, with top and bottom closing profiles. The translucent or opalescent multi-wall polycarbonate glazing, thickness 10 or 16 mm, will be maintained freely with clipped sections on self-draining receiver profiles.
