wall-mounted ashtray / galvanized steel / for outdoor use / for public spaces

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

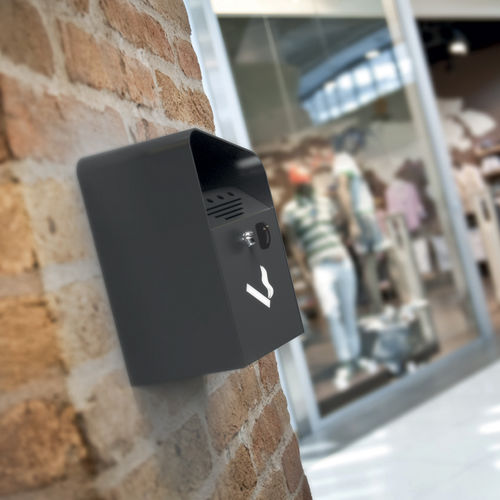

wall-mounted ashtray wall-mounted ashtray - SPEED WALL


  • Type:


  • Material:

    galvanized steel

  • Location:

    for outdoor use

  • Market:

    for public spaces


The SPEED WALL ashtray is made on the outside of a steel sheet of 20/10 thickness, bent on the upper part to shape the sides and the cover, and of 2 steel sheets of 15/10 thickness to shape the front and the back of the ashtray. Inside there is a box in galvanized steel sheet of 10/10 thickness hooking on the triangular key lock on the front. Its removal takes place by rotating the lock and pulling out the box from underneath. On the back of the ashtray there are 2 loops for the fixing to the wall through Fischer bolts with countersunk head screws and rod with diam. going from 4,5 to 6 mm (neither is provide).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and polyester-powder coating with RAL colors at choice. Such cycle is meant to guarantee the protection of the painted products in an environment of C4 corrosion class - UNI EN ISO 12944-2.

The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.

Weight : 3 kg
Capacity: 1,4 lt
