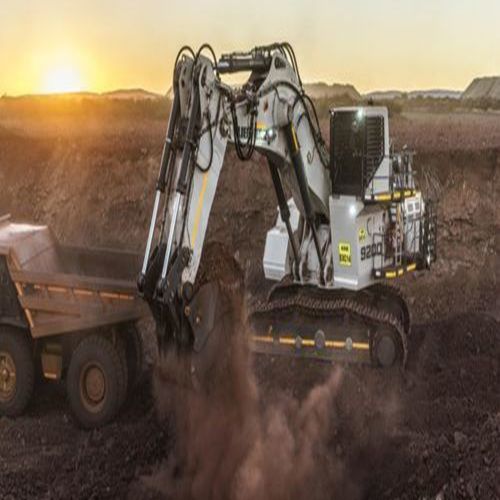

Tracked excavator R 9200 G7

high payloaddieselelectric

Overview
The Liebherr R 9200 G7 is a 200‑tonne class mining excavator engineered for high‑throughput operations. With a 12.50 m³ bucket, fast cycle times and optimised hydraulic control, the R 9200 improves productivity while reducing fuel use and component wear.

Key highlights

• Higher bucket capacity combined with faster cycle times — up to 26% productivity gain versus competition.
• Improved fuel efficiency — up to +25% claimed.
• Optional E‑Drive for zero on‑site exhaust emissions.
• Designed for high payloads and extended service intervals.

Liebherr Power Efficiency (LPE)
Liebherr Power Efficiency (LPE) is the integrated engine and hydraulic management system that supplies only the required engine power and hydraulic flow for each task.

• Up to 20% less fuel consumption.
• Maximises hydraulic efficiency.
• Reduces hydraulic throttling and engine load profile to extend component lifetime.

E-Drive (zero emission solution)
The optional R 9200 E‑Drive uses electric motors to deliver class‑leading cycle times while eliminating diesel exhaust emissions on site.

• No on‑site exhaust emissions.
• Lower maintenance costs.
• Reduced noise levels.

Powertrain (selected technical data)
Engine model: Cummins QSK38
Engine rating at 1800 rpm: 810 kW
Emissions: US EPA Tier 4f / EU Stage V
Electric motor (option): Available

Hydraulic system (selected technical data)
Attachment and travel drive pump: 4 variable flow axial piston pumps × 512 l/min @ 350 bar
Swing drive pump: 1 reversible swash plate pump × 640 l/min @ 350 bar (closed‑loop circuit)
Maximum swing speed: 5.00 rpm

Backhoe attachment (selected technical data)
Operating weight with backhoe attachment: 205.00 t
Bucket capacity (at 1.8 t/m³): 12.50 m³
Liebherr GET system for GP/HD/XHD buckets: Z110 / Z120 / Z120
Max. digging force (ISO 6015): 650 kN
Max. breakout force (ISO 6015): 740 kN

Face shovel attachment (selected technical data)
Operating weight with face shovel attachment: 210.00 t
Shovel capacity (at 1.8 t/m³): 12.50 m³
Liebherr GET system for GP/HD/XHD shovels: Z110 / Z120 / Z120
Max. crowd force at ground level (ISO 6015): 868 kN
Max. crowd force (ISO 6015): 924 kN
Max. breakout force for shovel (ISO 6015): 750 kN

Downloads & media (summary)
Product brochures, technical flyers, job reports, videos and an image gallery are available for the R 9200 G7.

Specifications

• Model: R 9200 G7
• Manufacturer: Liebherr
• Operating weight (backhoe): 205.00 t
• Operating weight (face shovel): 210.00 t
• Engine model: Cummins QSK38
• Engine rating (1800 rpm): 810 kW
• Emissions: US EPA Tier 4f / EU Stage V
• Bucket capacity (1.8 t/m³): 12.50 m³
• Shovel capacity (1.8 t/m³): 12.50 m³
• Attachment & travel drive pump: 4 × 512 l/min @ 350 bar
• Swing drive pump: 1 × 640 l/min @ 350 bar (closed‑loop)
• Maximum swing speed: 5.00 rpm
• Liebherr GET options: Z110 / Z120 / Z120
• Max. digging force (ISO 6015): 650 kN
• Max. breakout force (ISO 6015): 740 kN
• Max. crowd force at ground level (ISO 6015): 868 kN
• Max. crowd force (ISO 6015): 924 kN
• Max. breakout force for shovel (ISO 6015): 750 kN
• Electric motor option / E‑Drive available
• Key system: Liebherr Power Efficiency (LPE)
