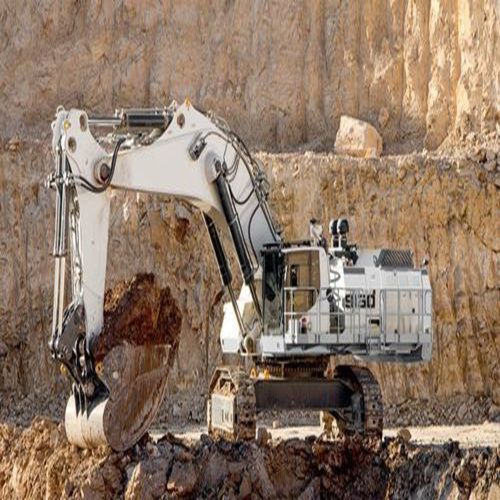

Crawler excavator R 9150 G7

demolitionfor rockhigh payload

Overview
The R 9150 G7 is a versatile mining excavator in the 150‑tonne class, offered in backhoe, face‑shovel and frontless configurations. Its optimized attachment geometry ensures efficient force distribution for high digging and hoisting performance and maximised bucket fill per cycle. Centralised service areas on the uppercarriage provide fast access to fluid compartments for reduced downtime.

Key highlights

• Configurable for multiple applications: backhoe, face‑shovel or frontless for demolition and special tasks.
• High digging and breakout forces through optimized attachment design for improved cycle payload.
• Central service access for quick maintenance and reduced machine downtime.

R 9150 E‑Drive: zero emission solution
The E‑Drive variant uses electric drive motors to deliver competitive cycle times without local diesel exhaust emissions. Benefits include:

• No on‑site exhaust emissions
• Lower maintenance requirements compared with conventional diesel drivetrains
• Reduced operational noise

Liebherr Power Efficiency (LPE)
LPE engine and hydraulic management optimises power and hydraulic flow to the task, reducing fuel use and improving component life. Benefits include:

• Up to 20% lower fuel consumption
• Improved hydraulic efficiency
• Reduced hydraulic throttling and reduced engine load profile for longer component life

Technical data (selected)
Engine model: Liebherr D9512
Engine rating at 1800 rpm: 565 kW
Emissions (USA/EPA): US EPA Tier 4f / EU Stage V
Electric motor (option): Available

Hydraulic system (selected)
Attachment & travel drive pumps: 3 Liebherr variable‑flow axial piston pumps × 512 l/min @ 350 bar
Swing drive pump: 1 reversible swash‑plate pump × 635 l/min @ 350 bar (closed‑loop)
Maximum swing speed: 6.50 rpm

Backhoe attachment (selected)
Operating weight (backhoe): 130.00 t
Bucket capacity (at 1.8 t/m³): 8.80–9.60 m³
Liebherr GET system (GP/HD/XHD): Z110 / Z110 / Z110
Max. digging force (ISO 6015): 530 kN
Max. breakout force (ISO 6015): 620 kN

Face shovel attachment (selected)
Operating weight (face shovel): 130.00 t
Shovel capacity (at 1.8 t/m³): 8.30 m³
Liebherr GET system (GP/HD/XHD): Z110 / Z110 / Z110
Max. crowd force at ground level (ISO 6015): 650 kN
Max. crowd force (ISO 6015): 779 kN
Max. breakout force for shovel (ISO 6015): 720 kN

Use cases & benefits
The R 9150 G7 is intended for heavy mining and large‑scale earthmoving where high digging forces, large bucket volumes and configuration flexibility are required. It supports productivity through optimized attachments, centralised service access and optional low‑ or zero‑emission drivetrains.

Characteristics / specifications

• Machine class: ~150 tonnes
• Operating weight (backhoe/face shovel): 130.00 t
• Engine model: Liebherr D9512
• Engine rating (1800 rpm): 565 kW
• Emissions: US EPA Tier 4f / EU Stage V
• Electric motor (option): Available
• Bucket capacity (1.8 t/m³, backhoe): 8.80–9.60 m³
• Shovel capacity (1.8 t/m³, face shovel): 8.30 m³
• GET system: Z110 (GP/HD/XHD)
• Attachment & travel drive pumps: 3 × 512 l/min @ 350 bar
• Swing drive pump: 1 × 635 l/min @ 350 bar (closed‑loop)
• Maximum swing speed: 6.50 rpm
• Max. digging force (ISO 6015): 530 kN
• Max. breakout force (ISO 6015): 620 kN
• Max. crowd force (shovel, ISO 6015): 650 kN (ground level) / 779 kN
• Max. breakout force for shovel (ISO 6015): 720 kN
