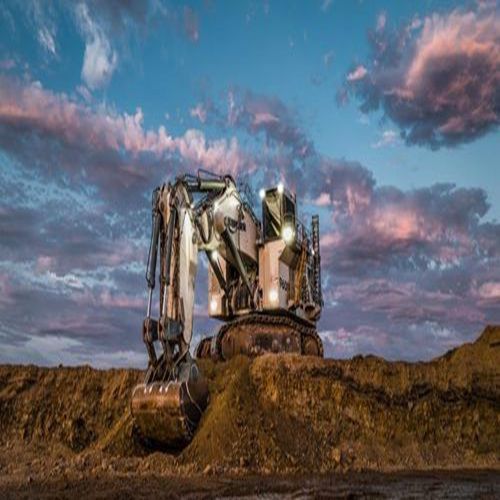

Crawler excavator R 9600 G8

fronthigh payloaddiesel

Product overview
The Liebherr R 9600 G8 is a 600-tonne class mining excavator designed for high payload per pass, long service intervals and field upgradeability. The modular architecture enables life-cycle upgrades. Liebherr Power Efficiency (LPE) management reduces fuel consumption by up to 20% versus the predecessor model while optimising hydraulic efficiency and component lifetime.

R 9600 highlights

• Designed service life: > 80,000 operating hours (modular design enables upgrades)
• Class-leading payload: ~7% more payload per pass
• Fuel savings: up to 20% less fuel consumption vs predecessor (LPE)

Main versions & options

• Standard powertrain: 2x Cummins QSK 50
• Optional powertrain: 2x Liebherr D9812
• Electric / E‑Drive option available for on‑site zero‑emission operation
• Attachment variants: backhoe (backhoe configuration) and face shovel (front shovel) with multiple bucket options

Liebherr Power Efficiency (LPE) – advantages

• Up to 20% reduced fuel consumption through integrated engine and hydraulic management
• Maximised hydraulic efficiency and reduced throttling
• Lower engine load profile for increased component lifetime

Powertrain (technical data)
Engine model: 2x Cummins QSK 50
Engine rating at 1800 rpm: 2,500 kW
Emissions (USA/EPA): Tier 2 / US EPA Tier 4f / EU Stage V
Engine model (option A): 2x Liebherr D9812
Electric motor (option): Available

Hydraulic system (technical data)
Attachment and travel drive pump: 8 variable flow axial piston pumps × 800 l/min @ 320 bar
Swing drive pump: 4 reversible swash plate pumps × 530 l/min @ 320 bar (closed‑loop)
Maximum swing speed: 3.70 rpm

Backhoe attachment (technical data)
Operating weight with backhoe attachment: 633.00 t
Bucket capacity (at 1.8 t/m³): 37.50 m³
Max. digging force (ISO 6015): 1,575 kN
Max. breakout force (ISO 6015): 1,740 kN

Face shovel attachment (technical data)
Operating weight with face shovel attachment: 645.00 t
Shovel capacity (at 1.8 t/m³): 37.00 m³
Max. crowd force at ground level (ISO 6015): 2,425 kN
Max. crowd force (ISO 6015): 2,625 kN
Max. breakout force for shovel (ISO 6015): 2,125 kN

Technical specifications

• Model: R 9600 G8
• Manufacturer: Liebherr
• Class: 600‑tonne class mining excavator
• Designed service life: > 80,000 operating hours
• Operating weight (backhoe): 633.00 t
• Operating weight (face shovel): 645.00 t
• Bucket capacity (1.8 t/m³): 37.50 m³ (backhoe) / 37.00 m³ (face shovel)
• Engine rating: 2,500 kW (at 1,800 rpm)
• Standard engine: 2x Cummins QSK 50
• Optional engine: 2x Liebherr D9812
• Electric motor option: Available
• Hydraulic pumps: 8 × 800 l/min @ 320 bar (attachment & travel), 4 × 530 l/min @ 320 bar (swing, closed‑loop)
• Maximum swing speed: 3.70 rpm
• Max. digging/breakout/crowd forces: see attachment data
