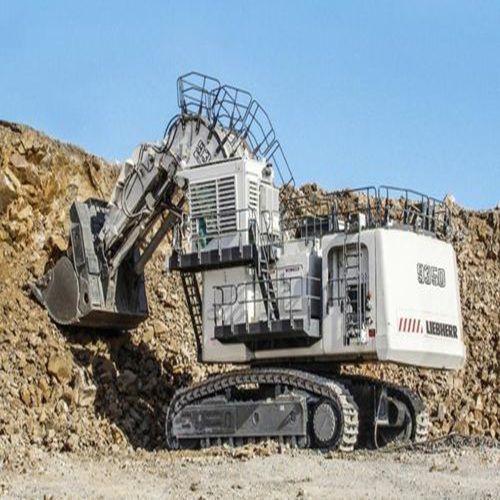

High payload excavator R 9350 G6

dieselelectricCUMMINS

Overview
The R 9350 G6 is a 300‑tonne class mining hydraulic excavator designed for high uptime and site productivity. Its simple, field-proven design and ground‑accessible service flap enable fast, safe maintenance. Large bucket/shovel capacities combined with fast cycle times deliver up to 30% higher productivity compared with machines in the same class.

Key highlights

• Reliability: Proven in extreme conditions with millions of operating hours and a simplified design for dependable field performance.
• Productivity: Higher bucket/shovel capacities and fast cycle times — up to 30% more productive than comparable machines.
• Maintainability: Ground-accessible service flap and wide access points for quick, safe maintenance.

E-Drive: zero-emission solution
The optional R 9350 E electric-drive version replaces the diesel drivetrain with electric motors to eliminate local exhaust emissions while maintaining class-leading cycle times.

• No greenhouse gas emissions on job site
• Lower maintenance costs
• Reduced noise emissions

Technical data (selected)
Engine model: Cummins QSK45
Engine rating at 1800 rpm: 1,120 kW
Electric motor (option): Available
Attachment and travel drive pump: 4 variable flow axial piston pumps × 754 l/min @ 320 bar
Swing drive pump: 2 reversible swash plate pumps × 390 l/min @ 350 bar (closed-loop circuit)
Maximum swing speed: 3.90 rpm
Bucket capacity (at 1.8 t/m³): 18.70 m³ (backhoe)
Shovel capacity (at 1.8 t/m³): 18.00 m³ (face shovel)

Features / specifications

• Brand: Liebherr
• Model: R 9350 G6
• Machine type: Mining hydraulic excavator (≈300 t)
• Operating weight (backhoe): 302.00 t
• Operating weight (face shovel): 310.00 t
• Engine: Cummins QSK45, 1,120 kW @ 1,800 rpm
• Electric drive: optional (R 9350 E)
• Bucket/shovel capacities: 18.70 m³ / 18.00 m³ (1.8 t/m³)
• Attachment & travel pump: 4 × 754 l/min @ 320 bar
• Swing drive pump: 2 × 390 l/min @ 350 bar (closed-loop)
• Maximum swing speed: 3.90 rpm
• Liebherr GET system for GP/HD/XHD: Z140 / Z140 / Z140
• Max. digging force (ISO 6015): 870 kN
• Max. breakout force (ISO 6015): 1,020 kN
• Max. crowd force at ground level (ISO 6015): 995 kN
• Max. crowd force (ISO 6015): 1,280 kN
• Max. breakout force for shovel (ISO 6015): 1,000 kN
