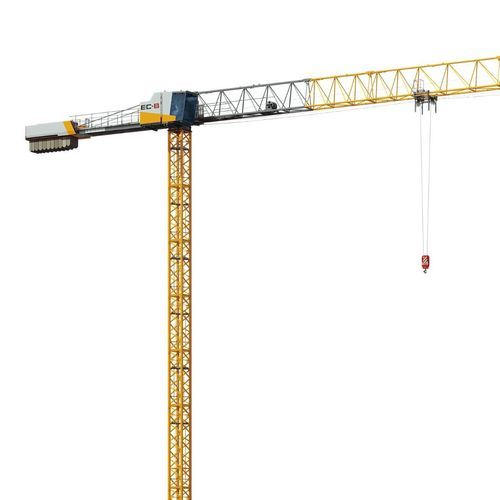

Tower crane 125 EC-B 6

fixedliftingconstruction

Product overview
The compact head of the EC-B series integrates the hoist gear, the slewing gear, the central switchgear and the complete slewing ring support. The unit is configured for Flat-Top tower crane installations and provides the core mechanical and electrical assemblies required for lifting operations.

Type
Flat-Top

Key features

• Standard: EN 14439
• Max. hook height: 59.00 m
• Max. lifting capacity: 6,000 kg
• Max. radius: 58.00 m
• Lifting capacity at max. radius: 1,600 kg
• Lines: 2
• Hoist gear: 18 kW FU / 30 kW FU
• Slewing gear: 7,5 kW FU
• Trolley travel gear: 5,5 kW FU

Technical data (table)
Lifting capacity at max. radius: 1,600 kg
Max. radius: 58.00 m
Standard: EN 14439
Lines: 2
Max. lifting capacity: 6,000 kg
Max. hook height: 59.00 m
Hoist gear: 18 kW FU / 30 kW FU
Slewing gear: 7,5 kW FU
Trolley travel gear: 5,5 kW FU

Characteristics / technical specifications

• Model designation: 125 EC-B 6 (Flat-Top)
• Standard compliance: EN 14439
• Maximum hook height: 59.00 m
• Maximum radius: 58.00 m
• Maximum lifting capacity: 6,000 kg
• Lifting capacity at maximum radius: 1,600 kg
• Number of lines: 2
• Hoist gear power: 18 kW FU / 30 kW FU
• Slewing gear power: 7,5 kW FU
• Trolley travel gear power: 5,5 kW FU
