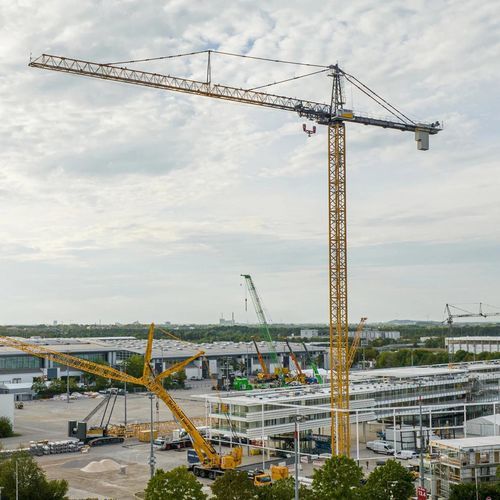

Tower crane 1188 EC-H 40

boomfixedlifting

Product overview
EC-H high-top tower cranes are designed for medium to large construction and plant projects where high lifting capacities and extended hook heights are required. The Fibre variant provides increased jib head load capacity and extended rope service life compared with steel rope alternatives.

Main features

• Standard: EN 14439
• Max. hook height: 94.20 m
• Max. lifting capacity: 40,000 kg
• Max. radius (jib): 90.00 m
• Lifting capacity at max. radius: 9,100 kg
• Lines: 2/4

Technical data
Lifting capacity at max. radius: 9,100 kg
Max. radius: 90.00 m
Standard: EN 14439
Lines: 2/4
Max. lifting capacity: 40,000 kg
Max. hook height: 94.20 m
Hoist gear: 110 kW FU SD.shift / 65 kW FU SD.shift
Slewing gear: 3 x 11.0 kW FU
Trolley travel gear: 11.0 kW FU

Model / technical specifications

• Model: 1188 EC-H 40 Fibre (Fibre version)
• Series: EC-H High-Top
• Max. lifting capacity: 40,000 kg
• Lifting capacity at max. radius: 9,100 kg
• Max. radius: 90.00 m
• Max. hook height: 94.20 m
• Lines: 2/4
• Hoist gear: 110 kW FU SD.shift / 65 kW FU SD.shift
• Slewing gear: 3 x 11.0 kW FU
• Trolley travel gear: 11.0 kW FU
• Fibre rope: approx. 40% more jib head load capacity vs. steel rope; approx. 4x service life compared to steel rope
