Rectangular shower base TUB series

tileablefoamcustom

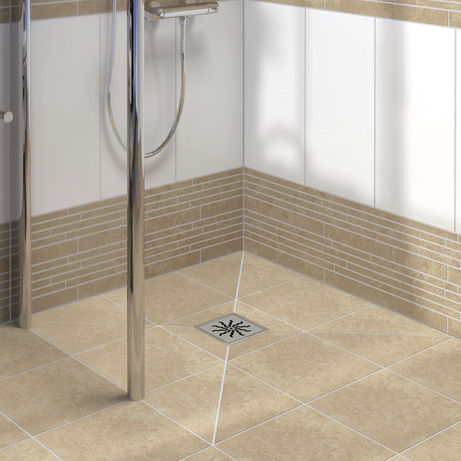

The flush with the floor, tileable shower bases with point drainage and slopes are available in so many design variants and sizes that they fit any bathroom. Whether in a small corner or in XXL format as a replacement for a bath tub – LUX ELEMENTS offers a suitable model for every application. TUB-EQ square, floor drain in the corner TUB-MQ square, floor drain in the centre TUB-ER rectangular, floor drain off-centre TUB-MR rectangular, floor drain in the centre Ready to be tiled entirely according to your personal taste and colour preference. The flush with the floor shower base elements for one-point drainage consist of a hard foam support element with top-side sealing, integrated and sealed floor drain support frame, 135 x 135 mm. Grate– standard grate or design grate Grate fitting frame Shower base element – square or rectangular Drain connection (vertical or horizontal) Substrate element (universal substrate element or made to measure) Matching substrate elements with a height of 55 mm are offered in addition to the shower bases. These are either made to measure or universal, depending on the shower base model. The shower bases for point drainage have a height of 30/45 mm with an integrated gradient, the substrate element is 55 mm high. This results in a total installation height of only 100 mm. Dimensions in mm. Measures without adhesive coating and tiles. For further details, please see technical data sheet TUB.
