Stainless steel floor drain TUB-BAS-S

ABSbathroomhorizontal

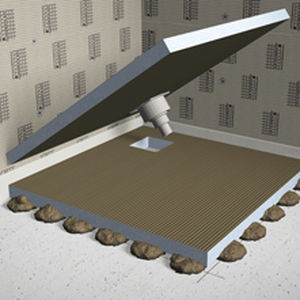

As an alternative to the combinable floor drain systems, the standard grate is available as a complete set with grate fitting frame and vertical or horizontal floor drain support. TUB-BAS-S Easy-to-install floor drain support DN 50 vertical, for 160 mm core drill hole, ... with odour trap, incl. grate fitting frame made from ABS and standard stainless steel grate. Universal height adjustment to suit tile thickness is possible. Drain performance [l /s]in accordance with DIN EN 1253 DN 50 vertical TUB-BAS-S standard grate: 1,7 l /s TUB-BAS-S 100 Easy-to-install floor drain support DN 40/DN 50 vertical, for 100 mm core drill hole, with odour trap, incl. grate fitting frame made from ABS and standard stainless steel grate. Universal height adjustment to suit tile thickness is possible. TUB-BAS-S 100 Easy cutting to size from DN 40 to DN 50 Drain performance [l /s]in accordance with DIN EN 1253 DN 50 vertical TUB-BAS-S-100 standard grate: 1,2 l /s TUB-BAW-S Easy-to-install floor drain support DN 50 horizontal, with odour trap, incl. grate fitting frame made from ABS and standard stainless steel grate. Universal height adjustment to suit tile thickness is possible. Drain performance [l /s]in accordance with DIN EN 1253 DN 50 horizontal TUB-BAW-S Standard grate: 1,0 l /s
