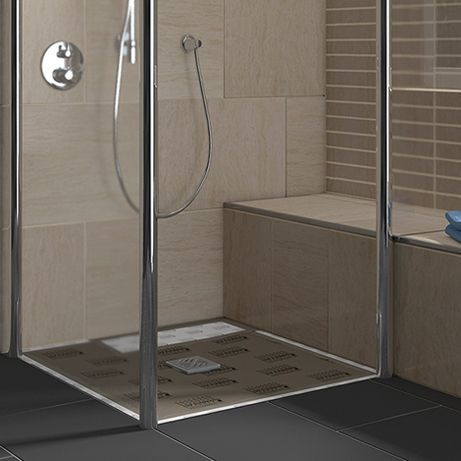

Rectangular shower base TUB-COMBI

above floorflushfoam

The TUB-COMBI models combine a shower base or shower drain elements with a horizontal floor drain, which is already integrated. The substrate element is therefore omitted and the shower base is particularly flat. TUB-COMBI MQ SET 300 drain in the centre TUB-COMBI-S MQ drain in the centre TUB-COMBI-S ER drain off-centre TUB-COMBI S BOL drain in gradient area in the centre Available as TUB-COMBI MQ SET 300 with DN 50 connector and TUB-COMBI-S with DN 40 connector. Combination of shower base and horizontal floor drain support (connection DN 40) Also for the substitution of bath tubs (TUB-COMBI-S BOL) Factory sealing and prefabricated gradient (four-sided) Extra-flat shower base height: 55/65 mm For barrier-free construction Second drainage level Good drainage capacity: 0,8 l/s resp. 48 l/min Large selection of grate fitting frames depending on the covering thickness (tile + adhesive) of the shower base: TUB RA-A with standard grate: from a covering thickness of 9 mm TUB RA-S with standard grate: from a covering thickness of 14 mm TUB-RA-DC/DM/DL/DV/DS/DF with design grate: from a covering thickness of 14 mm TUB-RA-DF with tileable cover: from a covering thickness of 14 mm 1. Standard grate standard grate or design grate 2. Grate fitting frame Cut-to-size 3. Shower base element Hard foam support material with dual-sided mortar coating and glass fibre fabric, 4-sided slope with sealing on the upper side 4. Plastic reinforcement Stability in the area of the drain pipe 5. Floor drain system with integrated and sealed horizontal floor drain DN 40 with odour trap 6. Sealing sleeve 200 x 800 mm
