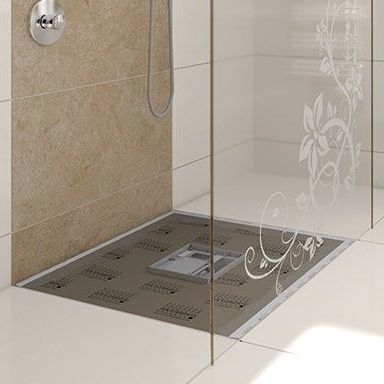

TUB-PUMP-S are hard foam shower base elements with integrated and sealed floor drain pump and an incorporated slope including 2 substrate elements used depending on the installation situation.
TUB-PUMP-S MQ 900
Shower base element, square
with integrated and sealed-in floor drain pump
TUB-PUMP-S MQ 1200
Shower base element, square
with integrated and sealed-in floor drain pump
TUB-PUMP-S MR 1200/900
Shower base element, rectangular
with integrated and sealed-in floor drain pump
TUB-PUMP-S MR 1400/900
Shower base element, rectangular
with integrated and sealed-in floor drain pump
The floor drain pump has a capacity of 25 l/min (at 0,6 m height difference) and can be used wherever wastewater cannot reach the drainpipe by gravity flow. This can be the case, for example, in old buildings, in the attic or in the cellar.
Due to a float switch that starts the pump as soon as water hits the shower base, this is independent of the water supply through the pipe and even pumps away, for example, if you pour a bucket of water into the drain.
The two associated substrate elements in different heights (50 + 30 mm) offer flexibility for adaptation to different installation situations in the floor.
Also available as product variant TUB-PUMP with powerful floor drain pump with an installation height of 125 mm excluding glue layers. For further information and technical data, see the data sheet LUX ELEMENTS®-TUB-PUMP.
