Square parasol ELICRO

aluminumgalvanised steelstainless steel

Description

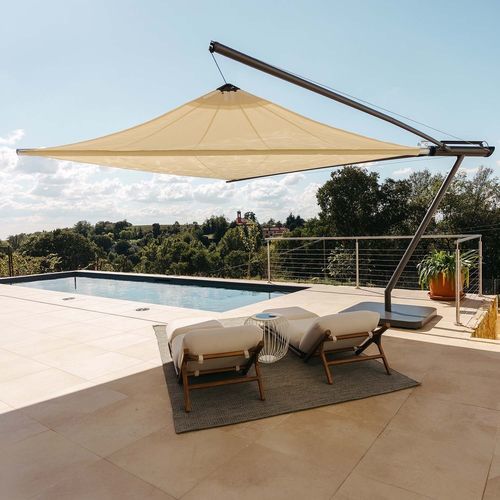

Elicro is a motorized sail umbrella with integrated solar panel, designed for free‑standing installation on terraces and gardens. It opens and closes autonomously, rotates 360° for sun‑tracking and includes an anemometer for automatic closure when wind thresholds are exceeded. The product is engineered for professional outdoor projects where aesthetic integration and reliable automatic operation are required.

Key features

• 12V motor with integrated solar charging: ~10–12 open/close cycles of autonomy; USB‑C emergency charging
• Patented CTR tensioning system: constant fabric tension in open, closed and rest positions
• 360° rotation with 12 locking positions (every 30°) for precise orientation
• Built‑in anemometer and light sensor: adjustable automatic closure on gusts

Product details
Structure with powder‑coated galvanized steel mast, extruded anodized aluminum winding tube and a 12V motor unit with rechargeable battery powered by the integrated solar panel. Fabric Purishade® is waterproof (400 mm water column), Oeko‑Tex certified and provides UPF 50+ UV protection. System tested for over 10,000 opening/closing cycles to ensure long‑term reliability.

Contents and accessories

• Umbrella with winding tube and 12V motor
• Solar panel and integrated battery
• Anemometer and ambient light sensor
• Floor anchoring plate included
• Rolling‑code remote control
• Installation kit, fasteners and manual
• Optional: ballast base for freestanding installation

Usage note
Elicro is designed to remain installed during the season; in extreme conditions (severe storms or heavy snow) closure or removal of the fabric/winder is recommended. The anemometer threshold can be adjusted and will close the sail automatically when set limits are reached.

Technical specifications

• Commercial model: Elicro
• Available sizes: 3.6×3.6 m (13 m²), 4×3.65 m (14.5 m²), 4×4 m (16 m²)
• Available shapes: square, trapezoidal
• Power supply: 12V DC (rechargeable battery charged by solar panel; emergency USB‑C charging)
• Solar panel: 5 W / 18 V; panel dimensions 620 × 67 × 45 mm
• Integrated battery: 12V, 5.2 Ah (Li‑ion); autonomy ~10–12 cycles open+close
• Energy per cycle: ~5.8 Wh; solar recharge: ~2–3 days summer, ~5–7 days winter (indicative)
• Motor: DM45DM50‑12, 140 W, 50 Nm torque, 12 rpm, 11.6 A; motor body Ø 45 mm; mechanical limit switches with thermal protection
• Tensioning system: CTR (Constant Tension Release) patented spring for constant fabric tension
• Winding tube: extruded anodized aluminum, Ø 90 mm, wall thickness 1.8 mm
• Fabric: Purishade® (Ivory, Cloud, White, Beige, Graphite); UPF 50+; water column 400 mm; Oeko‑Tex Standard 100 certified
• Structure: mast Ø 88.9 mm, thickness 3 mm; galvanized and powder‑coated (anthracite)
• Rotation: manual 360° with 12 positions (every 30°), stainless steel locking piston
• Anemometer: factory closure threshold 15 km/h (adjustable on 3 levels); integrated light sensor
• Remote: rolling code, range ~20 m open field; functions open/close/stop
• Anchoring included: floor plate Ø 208 mm, 10 mm thick, galvanized steel
• Optional: ballast base 110×110 cm (empty weight 50 kg, accommodates four 50×50 cm plates; plates not included)
• Wind resistance: with sail open Class 1 (~up to 20 km/h); with sail closed structure Class 3/4 (~50–60 km/h) (indicative)
• Operating temperature: –10°C / +50°C
• Electronics protection: IP55
• Warranty: fabric 4 years; structure and motor 2 years (statutory warranty)
