Square parasol CYGNUS QADRO

cantileveracrylicaluminum

Product description

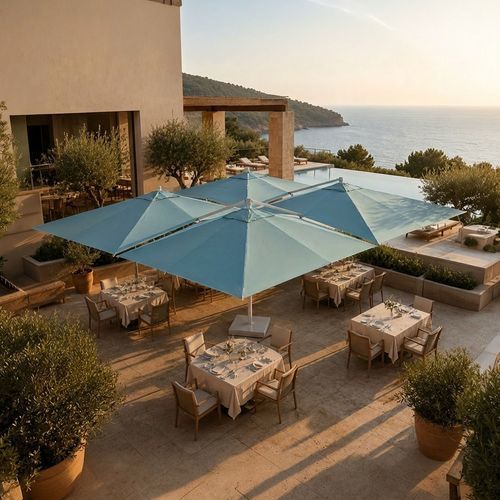

Cygnus Qadro is the cantilever parasol with four cross-shaped canopies that shades an entire space without a single pole among guests. Designed for resorts, restaurants and hospitality, it delivers 36 m² of organised coverage on a single central upright.

Main features

• Four independent gas pistons: each arm opens and closes on its own.
• No pole among the tables: 36 m² arranged on a single central pole.
• Acrishade 260 g/m² fabric: UPF 50+, blocks ~98% of UV rays, water‑repellent with integrated top airvent on each panel.
• Commercial-grade aluminium frame with reinforced square central pole.
• Perimeter Velcro and reinforced stitching at tension points for durable closure and resistance to wind.

The mechanism
Each arm is equipped with an independent gas piston for quick single-arm operation. The full cross (four arms) rotates on the upright via a 360° rotation lever, enabling fast orientation of the shaded area.

Key construction & contract details

• Panels: four identical canopy modules assembled on one upright to form a square 6×6 m footprint.
• Ribs and slats: aluminium ribs (8 per panel, specification 16×28 mm slats) with coordinated finishes.
• Upright: oversized square aluminium column designed to carry the tension and cantilever loads of four arms.
• Fabric finish: solution-dyed acrylic (Acrishade) for colourfastness and water repellence; top airvent per panel reduces pressure and ventilation of hot air.
• Accessories: dedicated shaped protective cover available (reinforced polyester, zip, pole-assisted installation).

Applications

• Hospitality: resort lunch service, restaurant terraces, club events.
• Large outdoor venues and contract installations where unobstructed seating / service areas are required.

caractéristiques / spécifications techniques

• Denomination / model: Cygnus Qadro
• Available size: 6×6 m (total coverage 36 m²; 4 panels of 9 m²)
• Opening: Push-open one-stop; gas piston assisted; independent piston per arm
• Fabric: Acrishade 260 g/m² (solution-dyed acrylic), UPF 50+, water-repellent; single airvent (no flap) on each panel; perimeter Velcro closure
• Frame: commercial-grade aluminium; 4 arms on single upright
• Ribs: 16×28 mm ribs; 8 ribs per panel (32 ribs total)
• Central pole (upright): square section 110 × 110 mm
• Total height (open): 260 cm; usable headroom beneath panels: 210 cm
• Net weight: 83.8 kg (product net weight)
• Wind resistance (recommended): up to 25 km/h; minimum recommended base / ballast: 100 kg or fixed anchoring
• Packaging: 5 separate parcels (1 upright + 4 umbrella heads); total gross weight & volume specified in packaging data
• Warranty: 7 years on frame · 3 years on fabric
