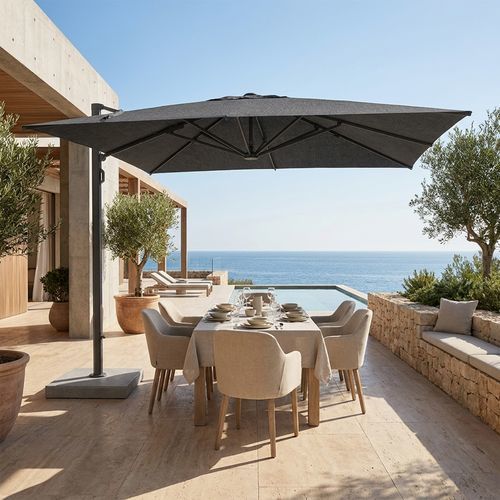

Square parasol CYGNUS

cantileverside postaluminum

Product overview Cygnus opens nine square metres of shade with no centre pole. One light touch and the shade is already above you, ideal for a terrace lunch that stretches past four or a full afternoon by the pool. The sun moves, you turn the lever: everything underneath stays right where it is.

Key features

• Push-open gas piston: open and close in seconds, even from your seat.
• 360° rotation with lever: rotate the whole canopy around the pole so the shaded area follows the sun while the furniture stays put.
• Acrishade fabric 260 g/m², UPF 50+: solution-dyed acrylic, water-repellent, colour-stable season after season, certified light resistance (approx. 1,500 h).
• 9 m² coverage (3×3 m): canopy shape square, side-arm design removes central pole obstruction.
• Commercial-grade frame: aluminium pole and ribs designed for repeated use.

Structure & mechanism Gas-assisted push-open mechanism designed to lift the arm with a controlled, uniform motion (similar principle to a car boot). The system enables effortless opening/closing and smooth operation of the arm.

Materials & durability

• Frame: commercial-grade aluminium; pole 75 × 100 × 2.5 mm.
• Ribs: 8 ribs, 16 × 28 × 1.2 mm.
• Fabric: Maanta Acrishade, 260 g/m², solution-dyed acrylic, UPF 50+, water-repellent, spray test AATCC 22-2017 ≈ 90.

Wind and use recommendations

• Wind resistance: up to 30 km/h in single configuration; minimum recommended ballast 120 kg for open use.
• Headroom: usable headroom approx. 210 cm beneath the canopy; total open height approx. 247 cm.
• Arm projection from pole: 100 cm (side-arm reach).

Lighting & accessories

• Central hub beneath the canopy compatible with Maanta rechargeable LED accessories (magnetic lamp and clip lamp sold separately).
• Available compatible anchoring options: fillable cantilever base (ballast), concrete anchoring plate, wooden deck anchoring plate, in-ground anchor (concrete pour) and 4-in-1 fillable base.
• Protective shaped 3×3 cover sold separately for storage.

Available finishes & colours Frame finishes: Anthracite, Matt Anodizing. Canopy colours: Graphite, Vellum, Glacier, White, Terracotta, Wheat (selection dependent on finish).

Packaging & contents

• Complete parasol box includes canopy pre-fitted to the ribs, aluminium frame (pole, arm, joints) and mounting accessories.
• Package dimensions (example): 269 × 22 × 48 cm · 1 piece per package · 0.28 m³.

Warranty 7 years on the frame (pole, arm, mechanisms, aluminium) · 3 years on the fabric (Acrishade canopy and textile accessories).

Caractéristiques / spécifications techniques

• Model: Cygnus (Cantilever side-arm parasol)
• Available sizes: 3×3 m (9 m² coverage)
• Opening: Push-open gas piston (assisted)
• Rotation: 360° continuous rotation via lever at the base of the pole
• Fabric: Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, water-repellent
• Pole: 75 × 100 × 2.5 mm aluminium
• Ribs: 16 × 28 × 1.2 mm, 8 ribs
• Arm projection: 100 cm
• Heights: total open ~247 cm · usable headroom ~210 cm · closed ~50 cm
• Net weight: 29 kg
• Wind resistance: up to 30 km/h (recommend ballast ≥120 kg)
• Lighting: central hub under canopy, compatible with Maanta rechargeable LED accessories (sold separately)
• Warranty: 7 years frame / 3 years canopy
