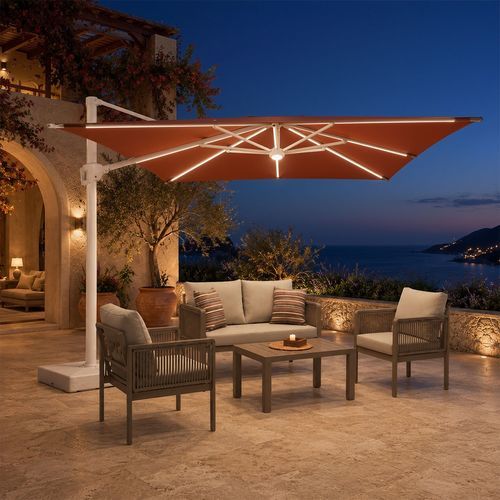

Square parasol AURIGA

tiltable mastside postcantilever

Product overview
Auriga is the tilting cantilever garden parasol by Maanta that brings light and shade exactly where you need them: the sun moves, Auriga follows. From a garden dinner party to a summer evening under the stars: precise shade by day, warm light by night.

Main features

• Heliflow® technology: tilt and height adjustment from a single joint for precise shade positioning.
• Integrated solar LEDs: 8 illuminated aluminium ribs powered by a solar panel in the pole; wireless remote control with dimmer included.
• Side arm (cantilever): lateral arm keeps the centre area free (no central pole obstructing table or seating).
• Acrishade canopy 260 gsm: solution-dyed acrylic, UPF 50+, water-repellent, colours rated to 1,500 hours light resistance (grade 4).
• 360° rotation: rotate the canopy with a foot pedal while parasol is open.
• Magnetic 2-in-1 Light: detachable magnetic lamp (Ø 278 mm) with built-in dimmer and 2,500 mAh battery; can be used attached to the pole or as a freestanding table lamp.

Mechanics & movement
Heliflow® central joint controls canopy tilt and coverage height simultaneously. Opening/closing operated by multifunction crank; final part of movement allows tilt adjustment. 360° rotation via floor pedal to reorient the canopy without moving the base.

Lighting & autonomy
Solar panel integrated in the pole charges the internal battery that powers LEDs embedded in each rib. Remote control included with dimmer to adjust light intensity. The LEDs and the Magnetic Light are designed for outdoor use and are resistant to rain and moisture.

Design & materials
Commercial-grade aluminium structure with choice of three frame finishes and coordinated canopy colours curated by Maanta's Centro Stile: frame finishes include Anthracite, Matt Anodizing and Matt White; canopy colours include Graphite, Vellum, Glacier, White, Terracotta and Wheat. Ribs: aluminium 16×28×1.2 mm (8 ribs). Pole: 75×100×2.5 mm.

What you receive

• Complete parasol: pre-assembled canopy fitted to frame, integrated lighting, frame and mounting accessories.
• Wireless remote control with dimmer.
• Magnetic 2-in-1 Light (removable).
• User and maintenance manual (PDF).

Caractéristiques / spécifications techniques

• Available sizes: 3×3 m and 3.5×3.5 m.
• Shape: Square.
• Canopy fabric: Acrishade 260 g/m², solution-dyed acrylic; UPF 50+; AATCC 22-2017 spray test = 90; light resistance 1,500 h (AATCC TM 16.3-2014) grade 4.
• Frame material: Commercial-grade aluminium.
• Pole section: 75 × 100 × 2.5 mm.
• Ribs: 8 ribs, 16 × 28 × 1.2 mm with integrated LEDs.
• Lighting power supply: solar panel integrated on top of the pole; remote control included; Magnetic 2-in-1 Light included.
• Opening & movement: Multifunction crank; Heliflow® (tilt + height adjustment + flipping left/right) + 360° rotation via foot pedal.
• Total open height: 252 cm (3×3) · 258 cm (3.5×3.5).
• Pole height: 255 cm (3×3) · 263 cm (3.5×3.5).
• Usable headroom beneath canopy: 205 cm (both sizes).
• Net weight: 28.2 kg (3×3) · 32.9 kg (3.5×3.5).
• Wind resistance: Up to 30 km/h (Beaufort 5). Minimum recommended base weight: 120 kg.
• Packaging: 1 piece per carton. 3×3 carton dimensions 258 × 44.5 × 22 cm · 0.2526 CBM; 3.5×3.5 carton dimensions 269 × 44.5 × 22 cm · 0.2634 CBM.
• Packed (gross) weights: 3×3 net 28.2 kg · gross 34.2 kg; 3.5×3.5 net 32.9 kg · gross 38.8 kg.
• Package contents: canopy, frame with integrated LEDs, magnetic lamp, mounting accessories, remote control, manuals.
• Compatible bases (not included): simple fillable base (with wheels), steel anchor plate for concrete, wooden floor anchoring plate, in-ground anchor plate for lawn, 4-in-1 ballast base (fillable) – choose a base providing at least 120 kg ballast for stability at rated wind speed.
• Warranty: 7 years on the aluminium frame · 3 years on the Acrishade canopy (from delivery).
