Electric underfloor heating MAGNUM

commercialfor concrete floorsoutdoor

Especially for large areas, such as loading docks or driveways for car parks, where safety must be ensured. MAGNUM Outdoor Cable can be fixed directly to the reinforcement before the sand bed, concrete or asphalt is poured.

MAGNUM Outdoor is a highly advanced system of heating cables, 2 sensor units that measure humidity in combination with the outdoor temperature and a custom-made control cabinet.

The power supply cable is uniquely connected to the resistance wire. The aluminium reinforcement jacket protects the resistance wires against mechanical damage and shields the cable against EMC (electromagnetic radiation). This has the advantage that the cable does not interfere with mobile phones, electrically operated garage doors and gates, security installations etc.

The cable is equipped with XLPE inner sheaths and a PVC outer sheath that is resistant to the action of chemicals.

Complete systems
Watertight control cabinets (IP-65) are manufactured and sized according to the number of cables/mats and installed power. For larger installations, cabinets can include modulating power regulators up to 50 kW to limit peak loads and reduce energy consumption. Systems available for 230 V and 400 V.

Installation

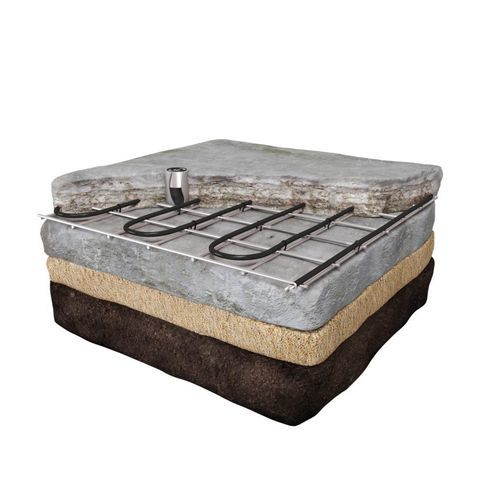

MAGNUM Outdoor systems are calculated and designed per order. Cables are fixed directly to reinforcement before the sand bed, concrete or asphalt is poured.

Product variants (table)
Art.nr. | Description | Length | Length connecting wire | Power | Volt | Amps | Ohm
120308 | MAGNUM Outdoor Cable Concrete 30W/m | 10 m | 4 m | 300 Watt | 230V | 1.3 | 176
120458 | MAGNUM Outdoor Cable Concrete 30W/m | 15 m | 4 m | 450 Watt | 230V | 2.0 | 118
120608 | MAGNUM Outdoor Cable Concrete 30W/m | 20 m | 4 m | 600 Watt | 230V | 2.6 | 88
120758 | MAGNUM Outdoor Cable Concrete 30W/m | 25 m | 4 m | 750 Watt | 230V | 3.3 | 71
120908 | MAGNUM Outdoor Cable Concrete 30W/m | 30 m | 4 m | 900 Watt | 230V | 3.9 | 59
121208 | MAGNUM Outdoor Cable Concrete 30W/m | 40 m | 4 m | 1200 Watt | 230V | 5.2 | 44
121508 | MAGNUM Outdoor Cable Concrete 30W/m | 50 m | 4 m | 1500 Watt | 230V | 6.5 | 35
121808 | MAGNUM Outdoor Cable Concrete 30W/m | 60 m | 4 m | 1800 Watt | 230V | 7.8 | 29
122108 | MAGNUM Outdoor Cable Concrete 30W/m | 70 m | 4 m | 2100 Watt | 230V | 9.1 | 25
122408 | MAGNUM Outdoor Cable Concrete 30W/m | 80 m | 4 m | 2400 Watt | 230V | 10.4 | 22
123008 | MAGNUM Outdoor Cable Concrete 30W/m | 100 m | 4 m | 3000 Watt | 230V | 13.0 | 18
123408 | MAGNUM Outdoor Cable Concrete 30W/m | 113 m | 4 m | 3400 Watt | 230V | 14.8 | 16
123608 | MAGNUM Outdoor Cable Concrete 30W/m | 120 m | 4 m | 3600 Watt | 230V | 15.7 | 15
124208 | MAGNUM Outdoor Cable Concrete 30W/m | 140 m | 4 m | 4200 Watt | 230V | 18.3 | 13

Specifications (table)
Sand bed + bricks - V
Concrete - V
Cold asphalt - X
Asphalt < 240°C - X
Inner jacket - XLPE
Outer jacket - PVC
Length of connecting wire - 4 m
Power - 30 Watt/m
Connection voltage - 230 V/50Hz
Certification - IEC 800, CE, VDE, IPX7
Warranty - 10 year

Technical details

• Power 30 Watt/m
• Cables available from 300 to 4200 Watt
• Connection voltage 230 V/50Hz
• Standards IEC 800 and CE
• Certification VDE
• Class IPX7
• Core insulation XLPE
