Electric underfloor heating 125006

industrialoutdoor

Overview

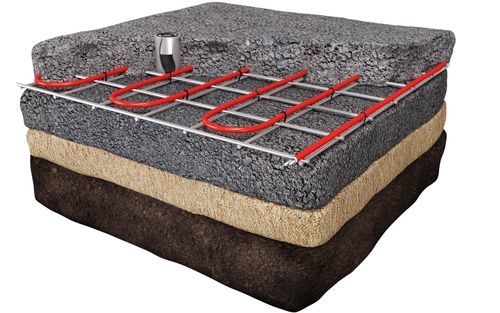

Especially for large paved areas such as loading docks, ramps and driveways where surface de-icing must be reliable. MAGNUM Outdoor Cable is fixed directly to reinforcement mesh before the sand bed, concrete or asphalt is placed. MAGNUM Outdoor is supplied as a complete system including heating cable, two sensor units (humidity + outdoor temperature) and a custom-made watertight control cabinet.

Construction and materials
The power conductor is uniquely connected to the resistance wire. An aluminium reinforcement jacket protects the resistance wires against mechanical damage and provides EMC shielding to prevent interference with mobile phones, electrically operated doors/gates and security installations. The cable has PTFE (Teflon) inner sheaths and a chemically resistant PVC outer sheath.

Complete systems
MAGNUM Outdoor installations are calculated and designed per order. A watertight control cabinet (IP-65) is manufactured and sized according to number of cables/mats and power. For larger projects the cabinet can be expanded with modulating power regulators up to 50 kW to avoid peak loads and save energy. The system can be implemented for both 230 V and 400 V networks.

Available models / lengths and electrical data
Art.nr. | Length | Length connecting wire | Power | Volt | Amps | Ohm
125006 | 20 m | 10 m | 600 Watt | 230V | 2.6 | 88.2
125012 | 40 m | 10 m | 1200 Watt | 230V | 5.2 | 44.1
125019 | 63.3 m | 10 m | 1900 Watt | 230V | 8.3 | 27.8
125034 | 113.3 m | 10 m | 3400 Watt | 230V | 14.8 | 15.6

Specifications (application and materials)
Sand bed + bricks: V
Concrete: V
Cold asphalt: V (unrolled processing!)
Asphalt up to < 240°C: V (unrolled processing!)
Inner jacket: PTFE (Teflon)
Outer jacket: PVC
Length of connecting wire: 10 m
Power: 30 Watt/m
Connection voltage: 230 V/50Hz
Certification: IEC 800, CE, IPX7, VDE
Warranty: 10 year

Technical details

• Power density: 30 Watt/m
• Cable powers available: 600 to 3400 Watt
• Connection voltage: 230 V/50Hz (systems also possible in 400 V)
• Standards: IEC 800 and CE
• Certification: ISO 9001
• Ingress protection: IPX7
• Core insulation: PTFE (Teflon)
• Suitable for unrolled mastic asphalt up to 240°C

Installation methods (complete systems)
MAGNUM Outdoor systems are calculated and designed per order. The cable is fastened to reinforcement mesh before pouring the sand bed, concrete or asphalt; the system accepts unrolled processing for mastic asphalt where specified.

Warranty
MAGNUM Outdoor Cable includes a 10 year warranty on the electrical function of the cable.

Characteristics / technical specifications

• Intended applications: loading docks, driveways, car-park ramps and other large outdoor paved areas
• Heating method: fixed heating cable system integrated into sand bed, concrete or asphalt
• Cable construction: resistance wire with aluminium reinforcement jacket, PTFE inner sheath, PVC outer sheath
• Sensors: two sensor units measuring humidity combined with outdoor temperature
• Control: custom-made watertight control cabinets (IP-65), expandable with modulating regulators up to 50 kW
• Voltage: 230 V/50 Hz (system can be implemented in 230 V and 400 V)
• Power density: 30 W/m (product series), individual cable powers from 600 W to 3400 W
• Operating asphalt temperature: suitable for unrolled mastic asphalt up to 240°C
• Standards and certification: IEC 800, CE, IPX7, VDE, ISO 9001
• Warranty: 10 years on electrical function
