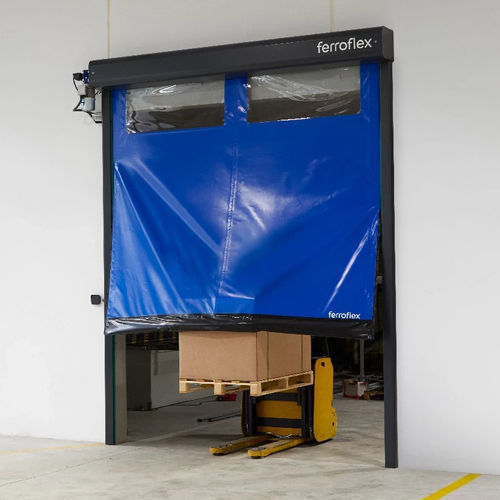

Shop metal shutter RÁPIDA AUTORREPARABLE

for parking lotstoragesupermarket

Overview
The self-repairing high-speed roll-up door is engineered for intensive use in high-traffic industrial and logistic areas (loading/unloading, moving machinery, personnel). Its side-zip self-repair system allows the curtain to detach from the guides on impact and re-enter the guides on the next cycle, avoiding damage and minimising downtime. Available with a reduced lintel to maximise clear opening height where headroom is limited.

Key features

• Side-zip self-repair system: controlled detachment and automatic re-engagement on the next cycle for continued operation after minor collisions
• Suitable for indoor and outdoor installation (wind resistance: Class 2)
• High opening and closing speeds for intensive operation
• Reduced lintel option to minimise headroom requirements
• Custom finishes: lacquered steel in any RAL colour or AISI 304 stainless steel; fabric available in custom colours or screen-printed

Applications

• Goods loading and unloading areas
• Storage and logistics zones (including specific variants for low-temperature conservation down to approx. -5°C)
• Supermarkets and retail entrances (self-repairing supermarket variants)
• Car-park driveways and service accesses

Optional configurations and variants

• Reduced lintel design (standard operator lintel reduced from 480 mm to 275 mm) to increase usable opening height
• Motor position: lateral or frontal; right or left mounting
• Structure in AISI 304 stainless steel (max stainless dimensions: 3800 x 3800 mm)
• Motor cover available
• Opening control systems: UPS, remote control, radar detectors, safety sensors, etc.
• Fabric options: coloured or silk-screened custom fabric
• Extended dimensions available in specific configurations (examples up to 6000 x 6000 mm)

Colors and finishes
Chassis finishes: lacquered steel in any RAL colour or stainless steel (AISI 304). Common RAL examples: RAL 9005, 8014, 7016, 7037, 7038, 5010, 5005, 5002, 6026, 3002, 2004, 1003, 1014, 9016.

Peepholes / vision panels
Multiple options: square or rectangular panels, horizontal or vertical positions, single or multiple panels per door according to project requirements.

Frequently asked questions

• What does self-repairing mean? The curtain can disengage from the guides after a minor impact and will re-enter the guides during the next operation, allowing the door to remain functional. Severe impacts that fully displace the curtain require manual reinsertion.
• Where can it be installed? Indoor and outdoor installations (wind resistance Class 2). Designed for intensive use where vehicles, machinery or personnel circulate frequently.
• What finishes are available? Chassis in lacquered steel (any RAL) or AISI 304 stainless steel; fabric can be customized and screen-printed.

Technical specifications

• Maximum standard dimensions: 4000 x 4000 mm (standard model)
• Extended dimensions possible depending on configuration (examples up to 6000 x 6000 mm)
• Use: indoor and outdoor
• Wind resistance: Class 2
• Structure: lacquered steel (RAL selectable); option for AISI 304 stainless steel (max stainless size 3800 x 3800 mm)
• Opening speed: adjustable up to approx. 2.0 / 1.5 m/s (depending on dimensions)
• Reduced lintel option: from 480 mm down to 275 mm
• Motor positions: lateral or frontal; right or left mounting
• Motor cover: available
• Opening control options: UPS, remote control, radar, sensors, etc.
• Fabric: custom coloured or silk-screened options
