Roll-up garage door

PVCsteelpainted steel

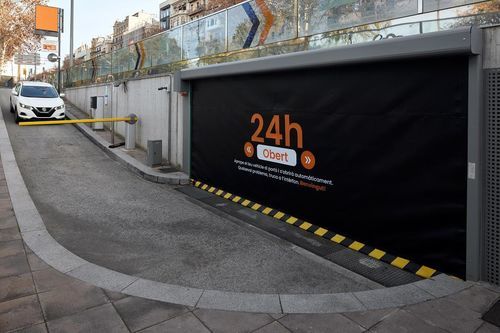

Product overview The self-repairing roll-up parking door is a high-speed door specifically designed for installation at commercial and institutional car park entrances and exits to control vehicle access and egress. It operates quietly to minimise disturbance to neighbouring areas. The concept reduces maintenance downtime by combining a low-maintenance motor with a self-repairing curtain system. The door consists of a steel head unit where the PVC curtain is wound and the curtain travels vertically between two lateral steel guides. The reinforced tarpaulin provides a secure curtain appearance.

Construction and materials

• Steel head unit housing the curtain
• Reinforced PVC tarpaulin/curtain
• Lateral steel guides for curtain travel
• Optional stainless steel 304 structure (subject to dimensional limits)

Key features

• Vertical opening
• Maximum dimensions up to 4000 x 4000 mm
• Suitable for indoor and outdoor installation
• Wind resistance: class 2
• Lacquered steel structure (standard)
• Adjustable opening speed up to 1.5 m/s (with inverter, depending on dimensions)
• Safety photocell for presence detection

Optional equipment

• Motor cover
• Manual chain emergency operation for emergency opening
• Stainless steel 304 structure (maximum dimensions 3800 x 3800 mm)
• Activation options: magnetic loop, access control integration, pushbuttons or sensors
• UPS for emergency opening in case of power failure
• Screen printing on the tarpaulin for large-size customisation
• LED luminous signalling

Colors

• Standard example finish: RAL 9005

Applications and integration

• Designed for entries/exits of commercial and institutional car parks (e.g., hotels, hospitals, public parking facilities)
• Not intended for private domestic garages or collective residential garage installations
• Includes connections to integrate with parking management and access control systems

Service and maintenance

• Technical assistance and customised maintenance plans are offered for this high-speed door

Frequently asked questions (summary)

• Where can I install this door? Suitable for commercial and institutional car parks (hotel, hospital, public parking). Not intended for private residential garage installations.
• Does the manufacturer provide services? Technical assistance and maintenance services are available with plans adapted to customer needs.
• Can the door be connected to a management system? Yes, the product includes connections to integrate with car park management systems.
• Can I customise the door? The door can be adapted to different dimensions and fitted with accessories; large-format customisation on the tarpaulin (e.g., screen printing) is available.

Technical characteristics / specifications

• Vertical opening
• Maximum dimensions: 4000 x 4000 mm
• Indoor and outdoor use
• Wind resistance: class 2
• Structure: lacquered steel (optional stainless steel 304)
• Opening speed: adjustable up to 1.5 m/s (with inverter, depending on dimensions)
• Safety systems: safety photocell
• Optional: stainless steel 304 structure (max. 3800 x 3800 mm), UPS, manual chain emergency operation, magnetic loop/access control/sensors for activation, LED signalling, tarpaulin screen printing
