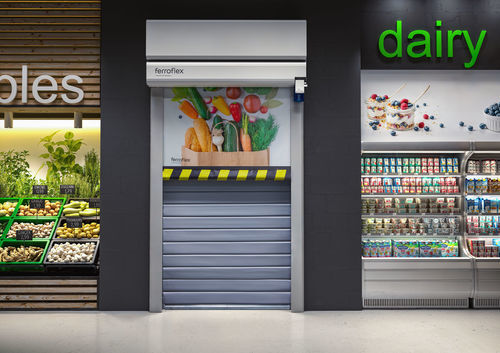

Roll-up industrial door EI120

powder-coated steelsmoke-proofmotorized

Product overview
This industrial solution integrates a high-speed self-repairing roll-up door and an EI120 fire curtain within a single vertical head. In normal operation the fire curtain is retracted and the door functions as a standard self-repairing high-speed door. When a fire signal is detected, the EI120 curtain descends to seal and compartmentalize the opening.

Main functional characteristics

• Parallel installation of a high-speed roll-up curtain and an EI120 fire curtain inside the same head.
• Independent drive systems for each curtain to optimise performance and response.
• Self-repairing design: on impact the curtain disengages from the guide to avoid damage; reinsertion into the guide is automatic when the lifting mechanism is actuated.
• Fire operation: on fire signal the EI120 curtain descends, closing the opening to block fire and limit smoke passage.

Optional equipment

• Double-height stop selector
• Additional push button
• Pull cord
• Remote control
• External push button
• Motion sensor
• Presence and movement sensor
• Loop detector

Colors

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes / vision options

• Shape: square or rectangular.
• Orientation: horizontal or vertical.
• Quantity: multiple vision panels possible.
• Vision panel types: clear vision or UV-filtered option.

Technical specifications

• Opening type: vertical
• Maximum dimensions: 2500 mm (width) x 3000 mm (height)
• Intended use: indoor installations
• Fire curtain rating: EI120 (120 minutes fire resistance)
• Structure: lacquered steel
• Adjustable opening/closing speed: approximately 0.8 m/s to 2.0 m/s
