Roller industrial door flexible striproll-up304 stainless steel
Add to favorites
Compare this product
Characteristics
- Opening system
- roller, flexible strip, roll-up
- Material
- 304 stainless steel
- Technical characteristics
- automatic, frost-resistant, moisture-resistant, corrosion-resistant, airtight, motorized
- Applications
- for cold storage
- Other characteristics
- rapid
Description
Description

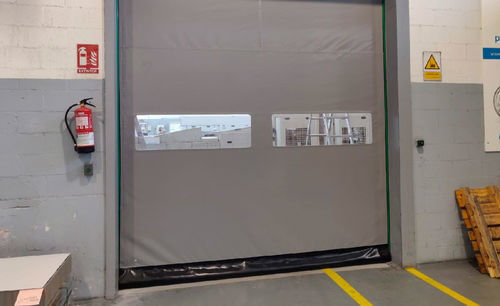

The self-repairing rapid door is designed for storage and cold-storage areas exposed to low temperatures down to -5°C. This cold-storage version includes technical improvements over the standard self-repairing model: an autonomous heating system for motor and guides, a 304 stainless steel frame and specific anti-humidity protection for the motor brake. The lateral self-repairing (side-zip) system allows the curtain to disengage from the guide on small impacts, limiting damage and facilitating rapid recovery while maintaining high airtightness.
Features
Optional equipment
Colors
Peepholes
Technical specifications
The self-repairing rapid door is designed for storage and cold-storage areas exposed to low temperatures down to -5°C. This cold-storage version includes technical improvements over the standard self-repairing model: an autonomous heating system for motor and guides, a 304 stainless steel frame and specific anti-humidity protection for the motor brake. The lateral self-repairing (side-zip) system allows the curtain to disengage from the guide on small impacts, limiting damage and facilitating rapid recovery while maintaining high airtightness.
Features
- Rated for storage environments down to -5°C
- Autonomous heating system (special thermal cabling) for motor and guides to prevent freezing
- Frame and structure in 304 stainless steel
- Anti-humidity protection for motor brake
- Self-repairing side-zip system: curtain detaches from guide on impact and can be restored in-line
- High level of air tightness suitable for temperature-controlled zones
- Suitable for indoor and outdoor installation
Optional equipment
- Motor position: lateral or frontal; right or left
- Structure lacquered in RAL colours (custom RAL finish available)
- Motor cover
- Opening and control options: UPS, remote control, radar detectors, presence sensors, etc.
- Coloured or silk-screened custom curtain
Colors
- RAL 9005
- RAL 8014
- RAL 7016
- RAL 7037
- RAL 7038
- RAL 5010
- RAL 5005
- RAL 5002
- RAL 6026
- RAL 3002
- RAL 2004
- RAL 1003
- RAL 1014
- RAL 9016
Peepholes
- Shapes available: square, rectangular
- Positions available: horizontal, vertical
- Quantity: multiple peepholes option for customized visibility
Technical specifications
- Maximum dimensions (standard model): 3800 x 3800 mm
- Wind resistance: Class 2
- Structure: 304 stainless steel
- Opening speed: adjustable (approx. up to 2.0 / 1.5 m/s depending on dimensions)
- Autonomous heating system for motor and heated guides to avoid freezing
- Timed closing function: adjustable 0–15 minutes
- Scheduled opening function (every 45 minutes) to reduce frost formation on guides
- Designed for intensive use in cold-storage and general storage environments
