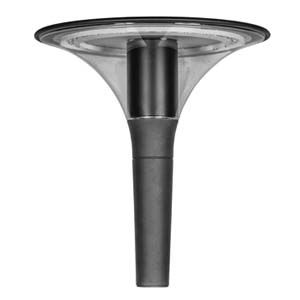

Urban lamp post STUD
contemporarycast aluminumanodized aluminum

urban lamp post
urban lamp post
urban lamp post
urban lamp post
urban lamp post
urban lamp post
urban lamp post
Add to favorites
Compare this product


Characteristics

Type
urban
Style
contemporary
Material
cast aluminum, anodized aluminum, PMMA, thermoplastic
Light source
LED
Number of lights
single
Shape
lantern
Protection class
IP65
Color
black
Other characteristics
connected
Height

800 mm
(31.5 in)

Length

735 mm
(29 in)

Color temperature

3,000 K, 4,000 K

Luminous flux

5,239 lm, 5,549 lm

Power

59 W

Description

- The luminaire luminous flux and the luminaire connected wattage quoted, may change as a result of technical progress. - On our website you will find data sheets with information on each luminaire concerning not only the current values but also the LED service life and the luminous flux in relation to the respective colour temperature. Technical details - LED luminaire suitable for urban areas, for use on Ø60mm pole tops - Silicone gaskets - Polyester powder coating after a treatment specific for weathering resistance - Cut out system when opening the luminaire through disconnecting switch - Pull-out wiring compartment and closing door for an easy maintenance - A2 stainless steel screws - Conforms to regional laws against light pollution Cover - Painted reinforced thermoplastic cover Diffuser - Non yellowing transparent PMMA (acrylic) diffuser Anti-glare louver - Black coated plastic cilyndrical anti-glare louver Housing - Anodised and painted die-cast aluminium housing Wiring - Reinforced thermoplastic wiring compartment and cover, black coated
