Technical details

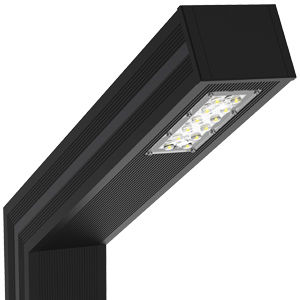

- Led's luminaire for parks and urban lighting
- Polyester powder coating after specific weathering resistance treatment
- Hole and terminal block 4x16mm² CLII with fuse holder and inspection door
- Pre-wired with cable 2x1,5mm² H07RN-F connected to the terminal block, for an easy installation
- Interlocking decorative side profile in PC (polycarbonate)
- Reinforced thermoplastic and painted front closure cap
- A2 stainless steel screws
- Anodized aluminum heat sink
- LED Circuit with n° 12 LED’s powered at 350mA (28,2W), in pole H3000mm (ground height)
- LED Circuit with n° 12 LED’s powered at 700mA (56,8W), in pole H4000mm (ground height)
- Driver IP67 included (DALI dimmable version available on request)
- PCB in IMS
Optics and lens
- Street optics medium
- Different optics availability according to the project needs, upon request:
- Street optics short
- Pedestrian optics
- Round symmetrical optics
- Non yellowing, transparent PMMA (acrylic) lens
