- The luminaire luminous flux and the luminaire connected wattage quoted, may change as a result of technical progress.
- On our website you will find data sheets with information on each luminaire concerning not only the current values but
also the LED service life and the luminous flux in relation to the respective colour temperature.
Technical details

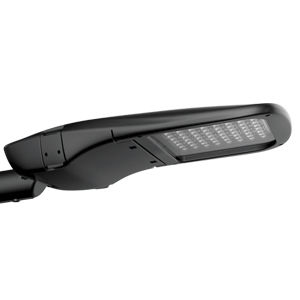

- Cut-off LED luminaire suitable for street lighting and for urban areas
- Silicone gaskets
- Polyester powder coating after a treatment specific for weathering resistance
- Cut out system when opening the luminaire through disconnecting switch
- A2 stainless steel screws
- Suitable for installation up to 8m height max (35W)
- Suitable for installation up to 15m height max (53,8W - 88,9W)
- Equipped with osmotic valve for leakage of air and humidity
Diffuser
- Flat, transparent, tempered glass diffuser, 4mm thick
Housing
- Anodised and painted die-cast aluminium housing
- Metric M20x1,5mm cable gland suitable for Ø6 - Ø12mm² cables
Wiring
- Anodised and painted die-cast aluminium wiring compartment
- Wiring plate in black reinforced thermoplastic
- The wiring compartment is completely removable without using any tool for an easier ordinary and supplementary maintenance
