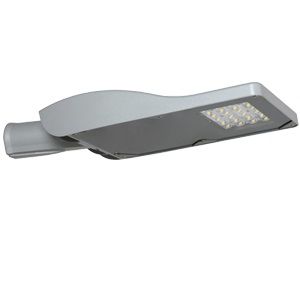

Urban lamp post SKILL PEDESTRIAN

contemporaryaluminumPMMA

- The luminaire luminous flux and the luminaire connected wattage quoted, may change as a result of technical progress. - On our website you will find data sheets with information on each luminaire concerning not only the current values but also the LED service life and the luminous flux in relation to the respective colour temperature. Technical details - Cut-off led's luminaire suitable for street lighting and for urban areas, for use on Ø60mmpole tops - Silicone gaskets - Polyester powder coating after a treatment specific for weathering resistance - A2 stainless steel screws - Equipped with osmotic valve for leakage of air and humidity - Suitable for installation up to 15m height max Diffuser - Flat, transparent, tempered glass diffuser, 4mm thickHousing - Anodised and painted die-cast aluminium housing - Metric M20x1,5mm cable gland complete with vent valve Wiring - Anodised and painted die-cast aluminium wiring compartment - Wiring plate in black reinforced thermoplastic - Quick connection between driver and optical unit through polarized connector - Quick connection between driver and switch trough polarized connector Optics - Pedestrian optics - Non yellowing, transparent PMMA (acrylic) lens Pole-top - Anodised and painted die-cast aluminium pole-top, suitable for poles Ø60mm andadjustable in vertical/horizontal position with tilt regulation +10°/-5° (steps of 5°)
