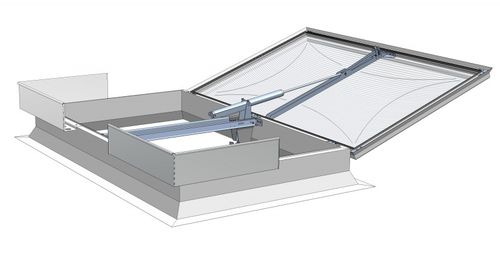

PVC smoke vent MCR-THERMOLIGHT PLUS NG-A

smoke and heat extractor

product details: Smoke vent flaps are automatic smoke exhausting devices which meet the requirements of PN-EN 12102-2. Their basic functions include exhausting smoke, fire gases and heat from rooms which are on fire, in order to: enable people to escape from the building help fire and rescue teams to operate protect building structure and property application: mcr-Thermolight Plus NG-A smoke vent flaps have a very good heat transfer coefficient value of U = 1.66 W/m²K. They are used on flat roofs covered with PVC, for example in: production buildings warehouses shopping centres logistics centres manufacturing standard: heat transfer coefficient of U = 1.66 W/m²K active exhaust surface: Acz = 2.66 m² nominal measurements: 1500 mm x 2500 mm core: 16 mm dome made from structured polycarbonate (truss structure) PVC base, H = 300 mm pneumatic controls ventilation (optional) - electric cylinder AC 230V mcr-Thermolight Plus line product options: function: smoke exhaust flap smoke exhaust and vent flap vent flap / vent flap - BROOF (t1) rooflight / rooflight - BROOF (t1) core: Two or three layered acrylic dome BROOF (t1) – structured polycarbonate and polyester board dome
