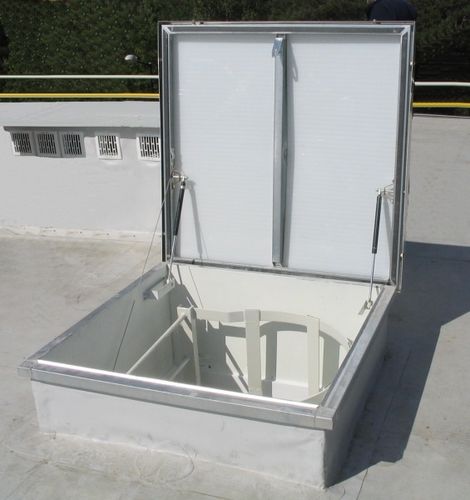

The Prolight roof hatches allow access to the roof for maintenance and operating purposes. They can also be a source of daylight for production halls, storage facilities and the last floors of multi-storey buildings.
technology:
depending on individual requirements, the Mercor company offers ventilation flaps mounted on straight or diagonal bases; the openings as well as the base heights vary in size to suit individual needs
having made a prior inquiry, the customer may place an order for bases of dimensions not listed in the technical specifications
all steel elements of skylights are coated with zinc for protection
standard bases are supplied with thermal insulation 20mm thick
the type and thickness of thermal insulation can be adjusted to individual requirements
type of panels:
polycarbonate cavity sheets 10 to 25mm thick, of varied transparency and various overall heat-transfer coefficients
single, double and triple acrylic domes
solid polycarbonate plates
layered plates (e.g. aluminium – insulation material – aluminium), the so-called “blind” panels
