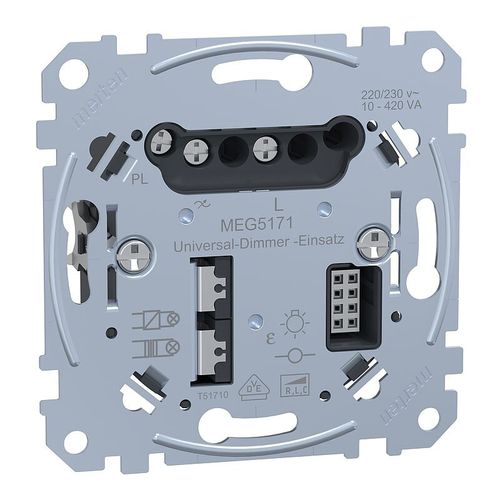

Light dimmer switch MEG5171-0000

rockerelectronicrecessed

Product name
Universal dimmer insert

Short description
Flush-mount universal dimmer module for lighting control and dimming. Multifunction controller compatible with PlusLink systems. Suitable for resistive, halogen and electronic transformer loads; integrated protection against electronic short-circuits and overloads.

Price and classification
Material price group: E0
Recommended retail price (excl. VAT): 134,50 €
EAN: 4042811164652

Compatible product families / Accessories

• PlusLink distributor (3-phase) (accessory reference on product page)
• PlusLink expansion (accessory reference on product page)
• Compatible ARGUS sensors and modules (various sensor modules listed in the product environment)

Main documents (excerpt)

• Product datasheet
• Declaration of Conformity (Sustainability)
• System user guide
• Certificate / Declaration of conformity
• Catalogue, Brochure, Technical illustration, Instruction sheet, User guide

Usage notes
Designed for installation in flush-mount inserts; fastening by screws and claws; operating ambient temperature: -5…35 °C; protection rating: IP20.

Characteristics / Technical specifications

• Series: Merten
• Product name: Flush-mount inserts
• Compatible product family: PlusLink
• Product or component type: Multifunction controller
• Device presentation: Mechanism with mounting frame
• Device application: Lighting control
• Type of technology: Electronic
• Enclosure variant: Recessed
• Mounting mode: By screws and claws
• Number of rockers: 1
• Dimmer type: Universal
• Load type: Resistive: 10 - 420 W; Halogen: 10 - 420 W; Electronic transformer: 10 - 420 VA
• Rated operational voltage [Ue]: 220/230 V AC 50/60 Hz
• Protection: Protection against electronic short-circuit and overload protection
• Operating ambient temperature: -5…35 °C
• Protection degree (IP): IP20
• Dimensions (H x W x D): 71 mm x 71 mm x 28 mm
• Packaging units: 1 piece per pack
• Packaging weight (single pack): 98,000 g
• Warranty: 18 months
